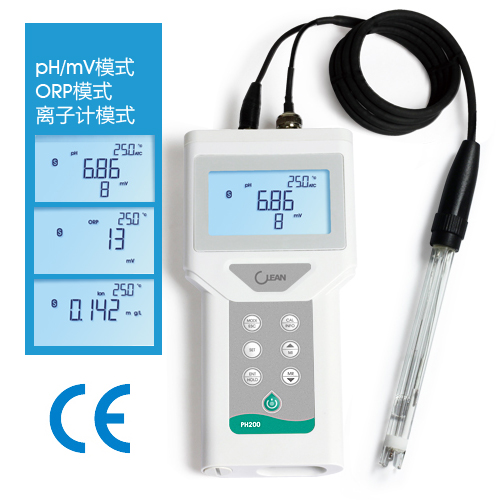

CLEAN PH200 ion Versatile Water Analysis Meter
CLEAN PH200 ion pH / mV / ORP / Ion / Temp
PH200 with precise and practical design concept:
simple operation, powerful functions,
complete measuring parameters, wide measurement range.
Four sets with 11 points buffer combination,
one key to calibrate and auto buffer recognition.
● One key to switch among pH, mV, ORP, Ion measuring modes.
● pH value, mV value, Temperature value with screen display simultaneously, humanized design.
●℃ ℉ optional
● Four sets with 11 points buffer combination, covering global standards including US, EU, CN, JP.
● Two points ORP calibration
● Ion concentration measuring range: 0.000-99999mg/L
● Large LCD, with high luminance LED backlight.
● One key to auto calibration: Zero offset, Electrode offset, ensure the accuracy
● One key to browse the setting parameters, including Electrode zero offset,
sensor slope and all set parameters.
● Prompt tone after measurement readings stable(Optional)
● HOLD Auto Lock function
● Temperature offset adjust
● 200 sets of measuring data storage
● Auto power off if no operations in 10 minutes. (Optional)
● 2*1.5V 7AAA batteries. Long battery life span
● pH value, mV value, Temperature value with screen display simultaneously, humanized design.
●℃ ℉ optional
● Four sets with 11 points buffer combination, covering global standards including US, EU, CN, JP.
● Two points ORP calibration
● Ion concentration measuring range: 0.000-99999mg/L
● Large LCD, with high luminance LED backlight.
● One key to auto calibration: Zero offset, Electrode offset, ensure the accuracy
● One key to browse the setting parameters, including Electrode zero offset,
sensor slope and all set parameters.
● Prompt tone after measurement readings stable(Optional)
● HOLD Auto Lock function
● Temperature offset adjust
● 200 sets of measuring data storage
● Auto power off if no operations in 10 minutes. (Optional)
● 2*1.5V 7AAA batteries. Long battery life span
 |
 |
 |
 |
| Water analysis | Lab | Industrial process | Surface water |
| pH | Range | -2.00 ~ 20.00 pH |
| Resolution | 0.01 pH | |
| Accuracy | ±0.01 pH | |
| ORP | Range | -2000~2000 mV |
| Resolution | 0.1mV ( -999 ～ 999mV ), 1 mV ( <-999 mV or >999 mV ) | |
| Accuracy | ± 1 mV | |
| Ion | Range | 0.000-99999mg/L, ppm |
| Resolution | 0.001,0.01,0.1,1 mg/L, ppm | |
| Accuracy | 1%+1LSD(1 valence）, 2%+1LSD(2 valence), 3%+1LSD(3 valence) | |
| Temp. | Range | -40.0-125.0℃（-40.0-257.0°F） |
| Resolution | 0.1°C, 0.1°F | |
| Accuracy | +0.2°C, 0.1°F | |
| Battery | Power supply | 2*1.5V 7AAA batteries |
| pH Buffer Kinds | B1 | 1.68, 4.01, 7.00, 10.01 (US) |
| B2 | 2.00, 4.01, 7.00, 9.21, 11.00 (EU) | |
| B3 | 1.68, 4.00, 6.86, 9.18, 12.46 (CN) | |
| B4 | 1.68,4.01, 6.86, 9.18 (JP) | |
| Others | LCD | 65*40 mm multi-line crystal display with backlight |
| Protection | IP67 | |
| Auto power off | 5 minutes without key be pressed (Optional) | |
| Environment | -5 °C～60 °C；Relative humidity﹤90% | |
| Memory | 200 sets | |
| Dimensions | 94*190*35mm (W*L*H) | |
| Weight | 250g |
| Package Dimension : L*W*H 340*275*105mm Weight : 1.5kg | |||
| PH200A | |||
| MPH200 Meter + CS1010 pH sensor + CT901 ATC Probe + CP337Carrying Pouch | |||
 |
 |
 |
 |
| PH200B | |||
| MPH200 Meter + CS1020 pH combination sensor + CT901 ATC Probe + CP337Carrying Pouch | |||
|
 |
|
|
| PH200P(ORP) | |||
| MPH200 Meter + CS2010 ORP Combination Platinum sensor + CP337Carrying Pouch | |||
|
 |
|
|
