Digital ORP sensors [Download]
Model
Specifications
 |
(optional accessory) twinno 200 Field Communicator With twinno200 Field Communicator, you can set up and calibrate the digital sensor efficiently in field. |

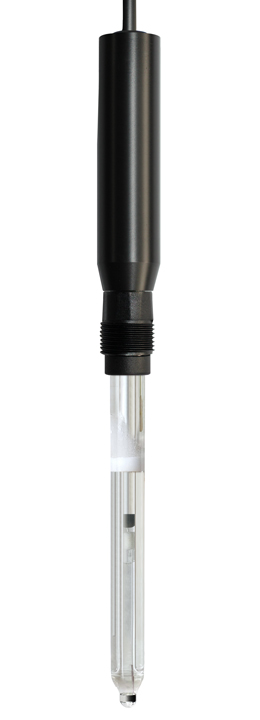

CS2543D Digital ORP Sensorfor Chemical Process
acid, alkali, chemical process apply
acid, alkali, chemical process apply
| Order Number | CS2543D5T |
| Specification | |
| ORP Range | -2000~2000 mV |
| Resolution | 1mV |
| Accuracy | ±1mV |
| Temperature Range | 0~ 70 °C |
| Pressure | 0 -6 bar |
| Output | mV |
| Shell material | Glass |
| Redox tip | Platinum band |
| Reference system | Ag/AgCl/KCl |
| Electrolyte | CMC gel |
| Junction | Double |
| Liquid Junction | Porous ceramic |
| Thread Cap | PG13.5 PP+POM |
| Electrode dimensions | ø12x120mm |
| Cable Length | 5m |
| Connector | Terminals |
| Output | RS485 Modbus RTU |
| Power Supply | DC 9~24V |
| IP rated | IP68 |

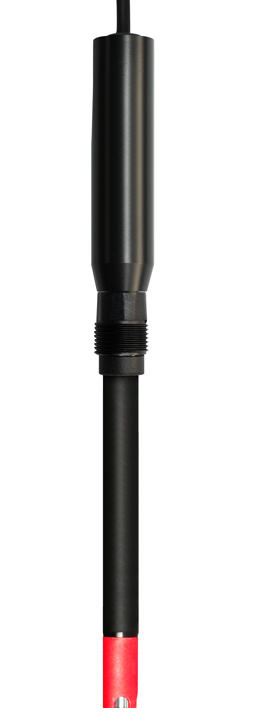

CS2668D Digital ORP Sensor
SNEX is for tough situations:
Sludge, viscous fluids, protein, hydrogen sulfide, cyanide, seawater, brine, mining, petrochemical process.
Sludge, viscous fluids, protein, hydrogen sulfide, cyanide, seawater, brine, mining, petrochemical process.
| Specifications | |
| ORP range | -2000~2000 mV |
| Temperature range | 0 ~ 80 °C |
| Max. Pressure | 6 bar (atm) |
| Output | mV |
| Shell material | PA+GF |
| Redox tip | Platinum band |
| Reference system | Ag/AgCl/KCl |
| Electrolyte | Viscous gel |
| Junction | Single |
| Liquid Junction | SNEX Solid Liquid Junction |
| Temp. sensor | none |
| Thread | PG13.5 |
| Dimensions | Φ12 x 120mm |
| Cable Length | 5m |
| Connector | Terminals |
| Output | RS485 Modbus RTU |
| Power Supply | DC 9~24V |
| IP rated | IP68 |

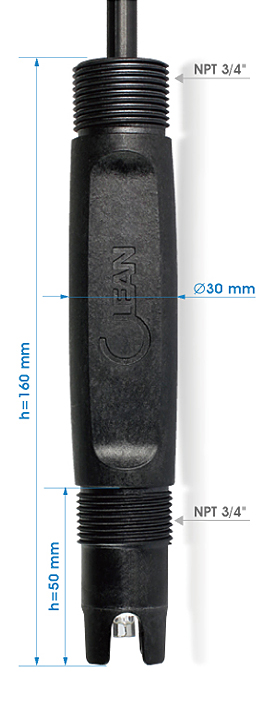

CS2733D Digital ORP Sensor
Applicable environment:
General Purpose
Applicable environment:
General Purpose
| Specifications | |
| ORP range | -2000~2000 mV |
| Temperature range | 0 ~ 80 °C |
| Max. Pressure | 6 bar (atm) |
| Output | mV |
| Shell material | PP |
| Redox tip | Platinum band |
| Reference system | Ag/AgCl/KCl |
| Electrolyte | Viscous gel |
| Junction | Double |
| Liquid Junction | Porous PTFE |
| Temp. sensor | none |
| Thread | NPT 3/4" |
| Dimensions | Φ30 x 160mm |
| Cable Length | 5m |
| Connector | Terminals |
| Output | RS485 Modbus RTU |
| Power Supply | DC 9~24V |
| IP rated | IP68 |

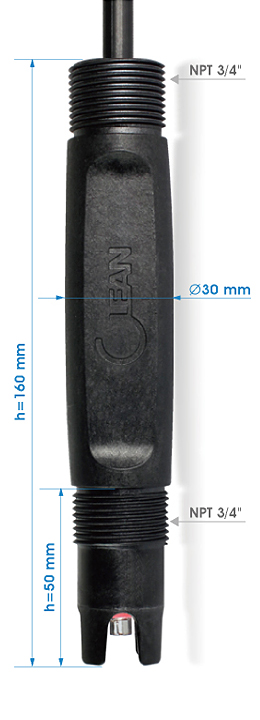

CS2768D Digital ORP Sensor
Complex Industrial environment Anti-poison,
long life span ORP sensor.
Complex Industrial environment Anti-poison,
long life span ORP sensor.
| Specifications | |
| ORP range | -2000~2000 mV |
| Temperature range | 0 ~ 80 °C |
| Max. Pressure | 6 bar (atm) |
| Output | mV |
| Shell material | PPS |
| Redox tip | Platinum band |
| Reference system | Ag/AgCl/KCl |
| Electrolyte | Viscous gel |
| Junction | Single |
| Liquid Junction | SNEX Solid Liquid Junction |
| Temp. sensor | none |
| Thread | NPT 3/4" |
| Dimensions | Φ30 x 160mm |
| Cable Length | 5m |
| Connector | Terminals |
| Output | RS485 Modbus RTU |
| Power Supply | DC 9~24V |
| IP rated | IP68 |
CS2769D Digital ORP Sensor
In-Line Max. Pressure to 20 bar (atm)/300 psig,
with SNEX solid liquid junction.
with SNEX solid liquid junction.
 |
  |
| Specifications | |
| ORP range | -2000~2000 mV |
| Operation temp. | 0 ~ 100 °C |
| Max. Pressure | 20 bar (atm)/ 300 psig |
| Output | mV |
| Shell material | PPS |
| Redox tip | Platinum band |
| Reference system | Ag/AgCl/KCl |
| Liquid Junction | SNEX Solid Liquid Junction (Red) |
| Temperature sensor | Yes (optional) |
| Dimensions | Φ30 x 160mm |
| Thread | G3/4″ |
| Cable Length | 5m |
| Connector | Terminals |
| Output | RS485 Modbus RTU |
| Power Supply | DC 9~24V |
| IP rated | IP68 |
