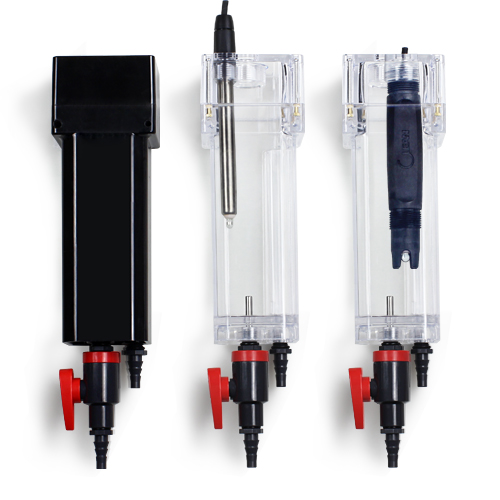

A580 Flow cell
A580 Flow cell
This Flow cell is designed for the measurement of
residual chlorine with a potentiostatic method, but
can be used for other sensors and measures too.
The cell's manufacturing characteristics allow the
sample to run through the potentiostatic electrode
site with a constant velocity.
The in-flow can be regulated through a check valve.
| Material | Polycarbonate |
| Inlet | PG13.5 or 3/4"NPT fitting |
| Connection tubing | 10x6.5 mm tubing |
| Temperature | 0-120 °C |
| Pressure | 0-3bar |
| Dimesions | 83(L)X69(W) x 230(H) mm |
| A580 | Clear body / PG13.5 thread cap | pH measuring |
| A580-L | Clear body / PG13.5 thread cap / with alter inlet direction tube | Free Chlorine measuring |
| A580-P2 | Clear body / two PG13.5 thread holes cap / with alter inlet direction tube | Free Chlorine & pH measuring |
| A581 | Clear body / NPT 3/4" thread cap | pH measuring |
| A581-L | Clear body / NPT 3/4" thread cap / with alter inlet direction tube | Free Chlorine measuring |
| A590-L | Black body / NPT 3/4" thread cap / with alter inlet direction tube |
Turbidity measuring |
