Process Dissolved Ozone Sensors
Model
Specifications

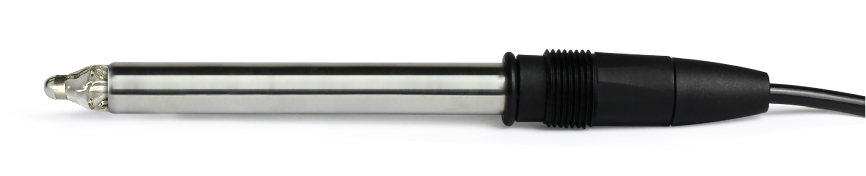

CS6520 Process Dissolved Ozone Sensor
●stainless steel body
●Range: 0 to 2.000 mg/L
●0 to 20.00 mg/L
●Work Temp: 0 - 50C
●Translation: 2A/ppm
●Length: 120mm Φ13mm
●Cable: 3m
●Connector:Terminals
●Range: 0 to 2.000 mg/L
●0 to 20.00 mg/L
●Work Temp: 0 - 50C
●Translation: 2A/ppm
●Length: 120mm Φ13mm
●Cable: 3m
●Connector:Terminals

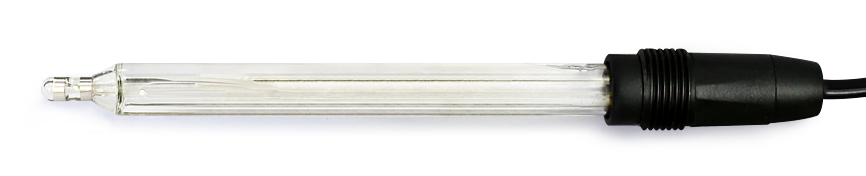

CS6530 Dissolved Ozone Sensor
●Principle:Potentiostatic
●Range:0 - 2.000 mg/L, 0 - 20.00 mg/L
●Resolution:0.001 mg/L, 0.01 mg/L
●Temperature range:0 - 70 C
●Pressure:0 -6 bar
●Optimum Flow Rate:25-100 L/h
●Shell material:Glass+PP
●Thread Cap:PG13.5
●Electrode dimensions:12x120mm
●Cable length:5m
●Connector:Terminals
●IP rated:IP68
●Range:0 - 2.000 mg/L, 0 - 20.00 mg/L
●Resolution:0.001 mg/L, 0.01 mg/L
●Temperature range:0 - 70 C
●Pressure:0 -6 bar
●Optimum Flow Rate:25-100 L/h
●Shell material:Glass+PP
●Thread Cap:PG13.5
●Electrode dimensions:12x120mm
●Cable length:5m
●Connector:Terminals
●IP rated:IP68

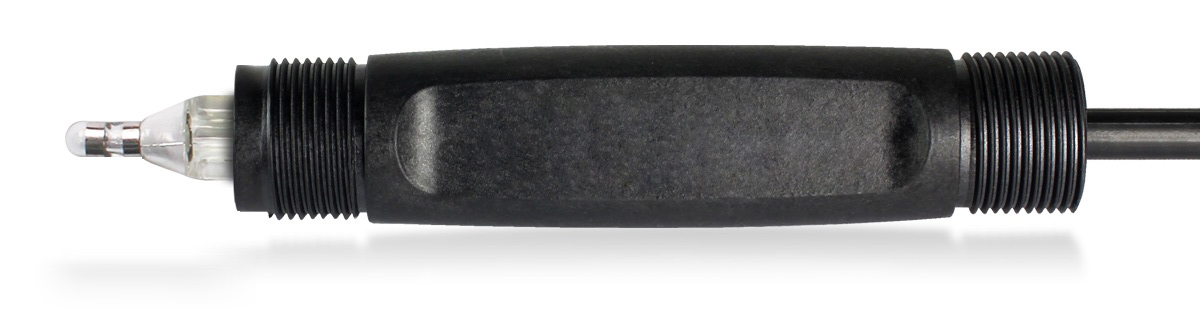

CS6730 Dissolved Ozone Sensor
●Principle:Potentiostatic
●Range:0 - 2.000 mg/L, 0 - 20.00 mg/L
●Resolution:0.001 mg/L, 0.01 mg/L
●Temperature range:0 - 70℃
●Pressure:0 -6 bar
●Optimum Flow Rate:25-100 L/h
●Shell material:Glass+PP
●Thread Cap:3/4″ NPT
●Electrode dimensions:30x160mm
●Cable length:5m
●Connector:Terminals
●IP rated:IP68
●Range:0 - 2.000 mg/L, 0 - 20.00 mg/L
●Resolution:0.001 mg/L, 0.01 mg/L
●Temperature range:0 - 70℃
●Pressure:0 -6 bar
●Optimum Flow Rate:25-100 L/h
●Shell material:Glass+PP
●Thread Cap:3/4″ NPT
●Electrode dimensions:30x160mm
●Cable length:5m
●Connector:Terminals
●IP rated:IP68
