Process Dissolved Oxygen Sensors
| PH/ORP/Conductivity/Dissolved Oxygen/Ionic Electrode No Temperature Analog Signal Optional S7 Quick Connector, Digital Electrode Optional M12 Quick Connector |
 |
Model
Specifications
●Range: 0 - 40 mg/L

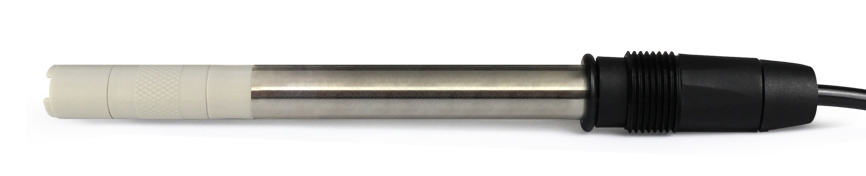

●Stainless steel housing
●Temp: 0 to 70℃
●Max Pressure: 5 bar
●Response time: 90% of final value in 60s
●Min Flow: 10mm/s
●Polarization voltage: -670/+50 mV
●Stabilizing time: 15m
●PG13.5 thread
●Diameter & Length :13*120mm
●5m cable length
●Connector:Terminals

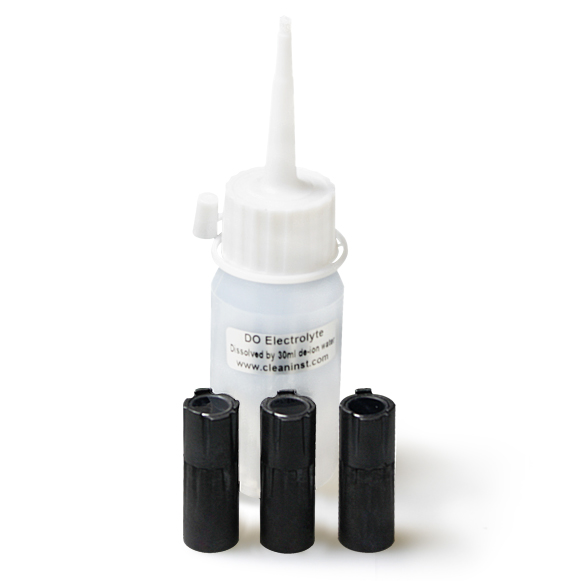

●Replaceable membrance cap
●Stainless steel housing
●Temp: 0 to 70℃
●Max Pressure: 5 bar
●Response time: 90% of final value in 60s
●Min Flow: 10mm/s
●Polarization voltage: -670/+50 mV
●Stabilizing time: 15m
●PG13.5 thread
●Diameter & Length :13*120mm
●5m cable length
●Connector:Terminals
●Replaceable membrance cap
●Range: 0 - 40 mg/L

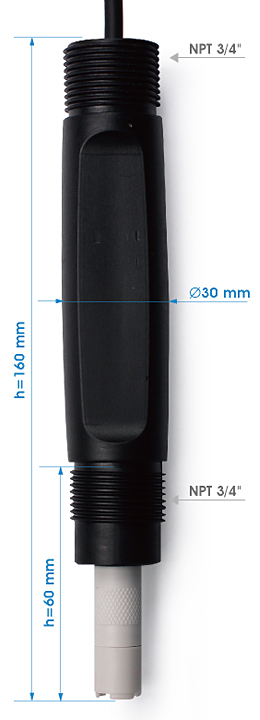

●3/4" NPT Thread;PP housing
●Temp: 0 to 70℃
●Max Pressure: 5 bar
●Response time: 90% of final value in 60s
●Min Flow: 10 mm/s
●Stabilizing time: in 15 minutes
●5m cable length
●Connector:Terminals
●Replaceable membrance cap
●3/4" NPT Thread;PP housing
●Temp: 0 to 70℃
●Max Pressure: 5 bar
●Response time: 90% of final value in 60s
●Min Flow: 10 mm/s
●Stabilizing time: in 15 minutes
●5m cable length
●Connector:Terminals
●Replaceable membrance cap
