Lab & Field Dissolved Oxygen Sensors
Model
Specifications
| Scope | 0-40 mg/L |
| Temperature | 0- 60 °C |
| Pressure | 0~ 4 bar |
| Reaction time | < 60 s (95%，25 °C) |
| Stabilization time | 3 min |
| zero drift | <0.5% |
| Temperature probe | NTC10K (22K,30K,Pt100/ Pt1000 Optional) |
| Flow rate limit | > 0.03 m/s |
| Residual current | < 2% In the air |
| Membrane head | Replaceable film head |
| (two film heads are provided with the goods) | |
| Waterproof grade | IP68 |
| Cable length | 3m, extendable |
| Joint | 8-PIN |

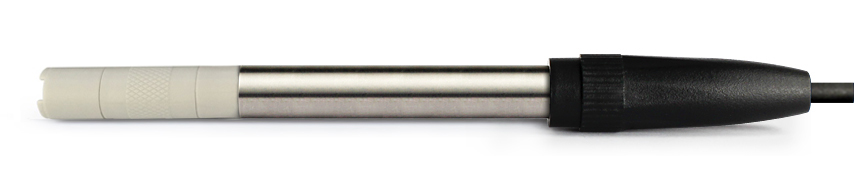

| Model | [ CS4051 ] |
| Shell material | SS316L, POM |
| size | Φ 13*130 mm |
| Electrode principle: polarographic | |
| nanoampere electrode:400nA | |
| (Compatible with DO200, DO500) | |
