Lab & Field pH sensors [Download]
Model
Specifications

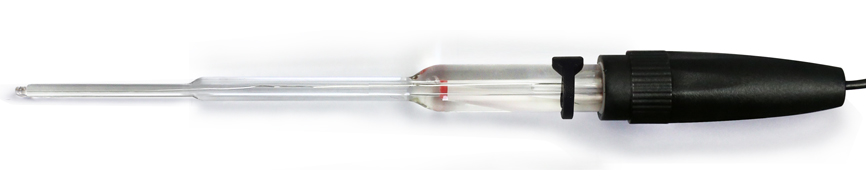

CS1203 pH combination sensor
Adapt for eppendorf tubes ≥ 0.2mL
Download Collocations:PH500PH200
Glass body
pH Range: 0 -12 pH
Temp. Range: 0 - 80℃
Porous Ceramic pore liquid junction
SNEX internal Ref. system (White).
       Double junction
Refillable
Liquid junction: KCl solution
Sensitive film part no.: W28
Length: 145mm Φ12mm Φ3mm
1m connecting cable with BNC

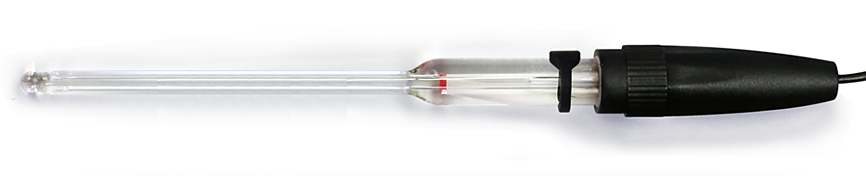

CS1206 pH combination sensor designed for test tube
Download Collocations:PH500PH200
Glass body
pH Range: 0 -12 pH
Temp. Range: 0 - 80℃
Porous Ceramic pore liquid junction
SNEX internal Ref. system (White).
       Double junction
Refillable
Liquid junction: KCl solution
Sensitive film part no.: W28
Length: 150mm Φ12mm Φ6mm
1m connecting cable with BNC
CS1010 pH combination sensor
General purpose and field
Download Collocations:PH500PH200
PC clear body
pH Range: 0-14
Temp. Range: 0 - 80℃
Internal Ref.: Ag/AgCl
Liquid Junction: Silica gel double core
       liquid junction
Sensitive film part no.: B11
Length: 120mm
Dia: 12mm
Cable: 1m, BNC

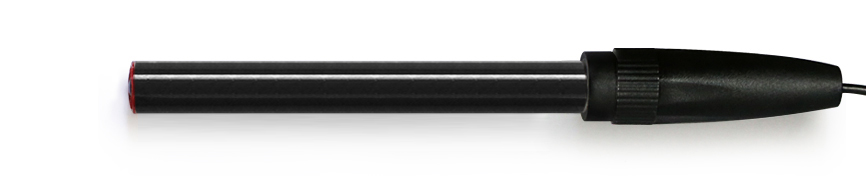

CS1211 Flat Tip pH Electrode for Skin and Surfaces
Glass sensor for lab analyzing
Download Collocations:PH500PH200
PP body
pH Range: 0 -12 pH
Temp. Range: 0 - 80℃
SNEX Ag/AgCl/KCl solid-state
       non-exchange reference electrode system
Sensitive film part no.: W28
Length: 120mm Φ12mm
1m connecting cable with BNC

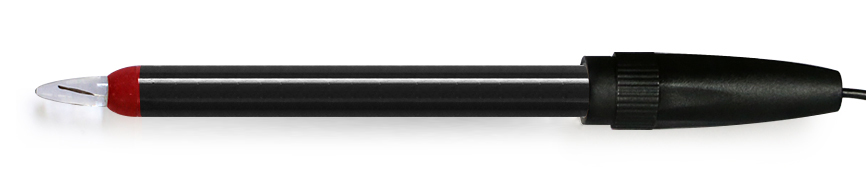

CS1212 pH combination sensor for semisolid / soft state samples
Glass sensor for lab analyzing
Download Collocations:PH500PH200
PP body
pH Range: 0 -12 pH
Temp. Range: 0 - 80℃
Ag/AgCl/KCl reference electrode system
Sensitive film part no.: W28
Length: 120mm Φ12mm
1m connecting cable with BNC

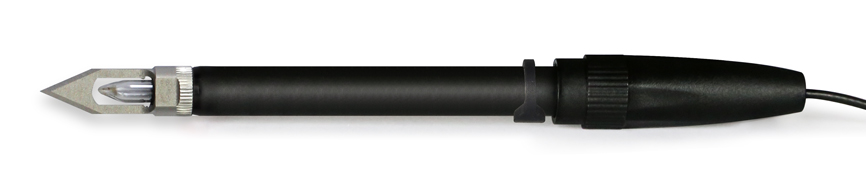

CS1215 Solid Piercing pH combination sensor
For Meat, fruits, soil,etc..
Download Collocations:PH500PH200
PA+GF body +316L Stainless Piercing Blade
pH Range: 0-13
Temp. Range: 0 - 80℃
Internal Ref.: Ag/AgCl / KCl
Liquid Junction: Cloth
Piercing depth:≥28mm
Length: 120mm
Dia: 12mm
Cable: 1m, BNC

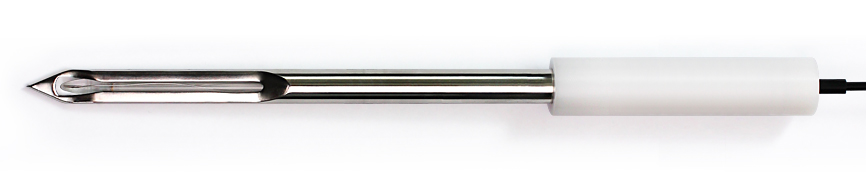

CS1216 Long Knife Solid Piercing pH sensor
For Meat, fruits, soil,etc..
electrode head(without piercing blade): CS1216G
Removable piercing blade: S216
316L stainless steel, easy cleaning.
Minimum piercing depth: 36mm
Download Collocations:PH500PH200
pH range: 0 - 12
zero point (pH): 7.00 0.25
temperature range: 0 - 60℃
hand shank material: POM
shaft material: 316L Stainless Steel
membrane glass: W28
membrane resistance: < 600 MO
reference system: Ag/AgCl/KCl
reference diaphragm: one porous ceramic
liquid junction: Single
Cable: 1m, BNC

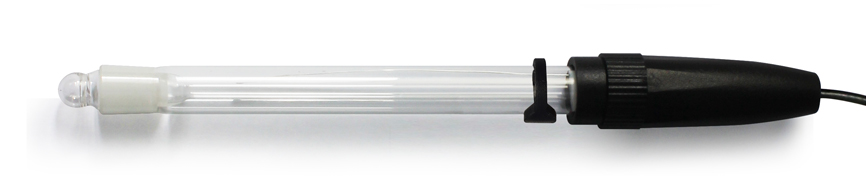

CS1218 Pure water/ low ion concentration pH sensor
Glass sensor for lab analyzing
Download Collocations:PH500PH200
Glass body
pH Range: 0 -12 pH
Temp. Range: 0 - 80℃
Annular grinding liquid junction
Ag/AgCl internal Ref. system
Refillable
Liquid junction: KCl solution
Sensitive film part no.: W28
Length: 120mm Φ12mm
1m connecting cable with BNC
CS1020 pH combination sensor
Precise measuring
Download Collocations:PH500PH200
Glass body
pH Range: 0-14
Temp. Range: 0 - 80℃
Internal Ref.: Ag/AgCl Liquid
Liquid Junction: Porous ceramics
       liquid junction
Length: 120mm
Dia: 12mm
Cable: 1m, BNC

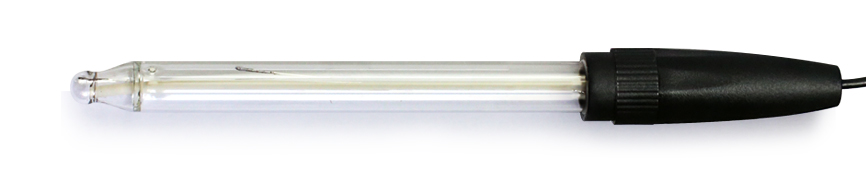

CS1021 3-in-1 pH sensor
Precise measuring
Download Collocations:PH500PH200
Glass body
pH Range: 0-14
Temp. Range: 0 - 80℃
Internal Ref.: Ag/AgCl Liquid
Liquid Junction: Porous ceramics
       liquid junction
Temp. sensor: 10KΩ,30KΩ(Optional)
Length: 120mm
Dia: 12mm
Cable: 1m, BNC

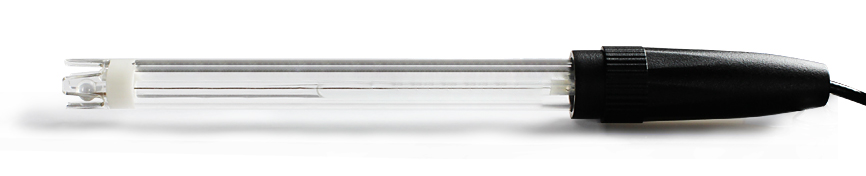

CS1030 3-in-1 pH sensor
Download Collocations:PH500PH200
PC clear body
Temp: TH10K
pH Range: 0-14
Temp. Range: 0 - 80℃
Internal Ref.: Ag/AgCl
Liquid Junction: Silica gel double core
       liquid junction
Sensitive film part no.: B11
Length: 120mm
Dia: 12mm
Cable: 1m, BNC

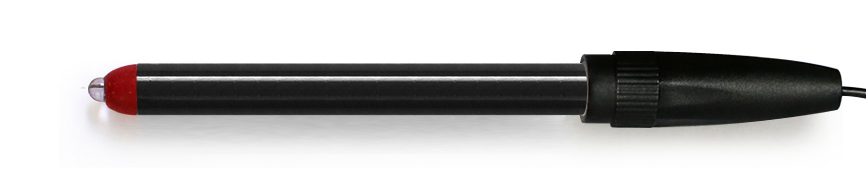

CS1258 pH combination sensor designed for colloid / viscous fluids
Glass sensor for lab analyzing
Download Collocations:PH500PH200
PP body
pH Range: 0-14
Temp. Range: 0 - 90℃
Liquid junction: SNEX
SNEX Ag/AgCl/KCl reference
       electrode system
Sensitive film part no.:B11
Length: 120mm Φ12.7mm
1m connecting cable with BNC

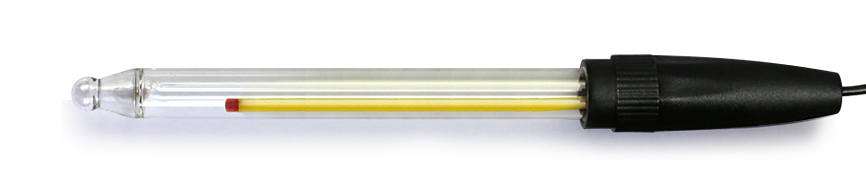

CS1297 Non- aqueous phase (organic phase) pH combination sensor
Glass sensor for lab analyzing
Download Collocations:PH500PH200
Glass body
pH Range: 0 -12 pH
Temp. Range: -10 - 90℃
Porous Ceramic pore liquid junction
SNEX internal Ref. system(Yellow).
       Double junction
Liquid junction: LiCl solution
Sensitive film part no.: W28
Pressure: 0 -3 bar
Length: 120mm Φ12mm
1m connecting cable with BNC
CSR168 SNEX Ref. sensor Ref. sensor designed for Harsh Industrial environment. Viscous Fluids Protein, particles, organic solvent, hydrogen sulfide, Cyanide etc.
PA + GF body
Ag/AgCL Ref.sensor
pH Range: 0-14
Temp. Range: 0 - 80℃
Temp. sensor: Pt1000
Liquid Junction: SNEX
SNEX solid-state non-exchange reference
       electrode system, Double junction.
PG13.5 thread
Pressure: 0-20 bar (@50℃)
Size: 120mm Φ12.7mm
Cable: 1m, BNC
