Lab Conductivity Sensors
Model
Specifications

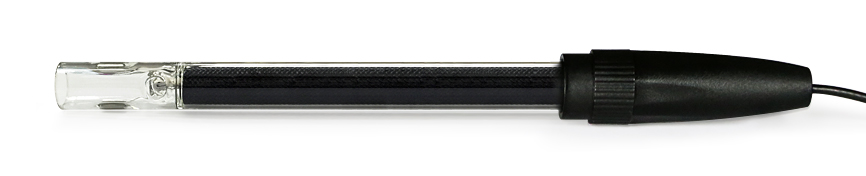

CS3000 Conductivity Sensor CS3000 Conductivity Sensor
Standard 2-electrode Conductivity cell
glass body
Glass and platinum
with Built-in ATC
Range: 1 μS/cm - 20 mS/cm
Cell constant K=1.0
Φ12 x120mm
6-pin connector
1m cable length
CS3021 Conductivity Sensor CS3021 Conductivity Sensor
2-electrode Conductivity cell
SS316L
with Built-in ATC
Range:1 μS/cm - 20 mS/cm
Cell constant K=1
6-pin connector
1m cable length

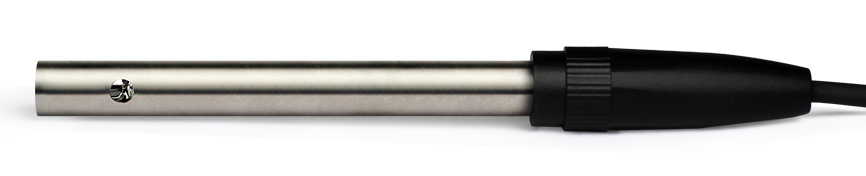

CS3022 Conductivity Sensor CS3022 Conductivity Sensor
2-electrode Conductivity cell
SS316L
with Built-in ATC
Range: 0.1 μS/cm -2000.0 μS/cm
Cell constant K=0.1
6-pin connector
1m cable length

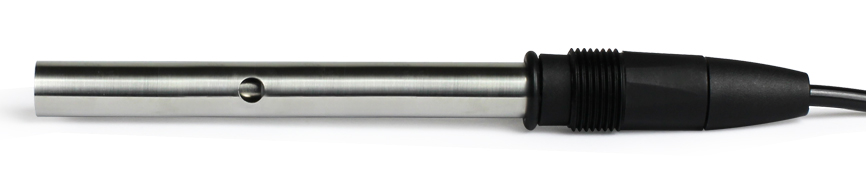

CS3023 Conductivity Sensor CS3023 Conductivity Sensor
Ultra-Pure, Water Verification
2-electrode Conductivity cell
SS316L
with Built-in ATC
Range: 0.00 μS/cm - 200.00 μS/cm
Cell constant K=0.01
PG13.5 thread
6-pin connector
1m cable length
CS3010 Conductivity Sensor CS3010 Conductivity Sensor
2-electrode Conductivity sensor
SS316L
10K ATC
Cell constant K=10.0
Range:10 μS/cm - 200.0 mS/cm
Temp Range: -10C to 80C
Pressure: 0 - 8 bar
1m cable length
