A Fluoride Ion Selective Electrode sensor specifically designed to measure .02 ppm to saturated (1x10-6 M to saturated) concentrations of F-.
Applications include, but not limited to: Drinking Water, Wastewater and Natural Waters, Air and Stack Gases, Acids, Sea Water, Minerals, Soil, Foods, Biological Fluids, Toothpaste.
Applications include, but not limited to: Drinking Water, Wastewater and Natural Waters, Air and Stack Gases, Acids, Sea Water, Minerals, Soil, Foods, Biological Fluids, Toothpaste.
Model
Specifications

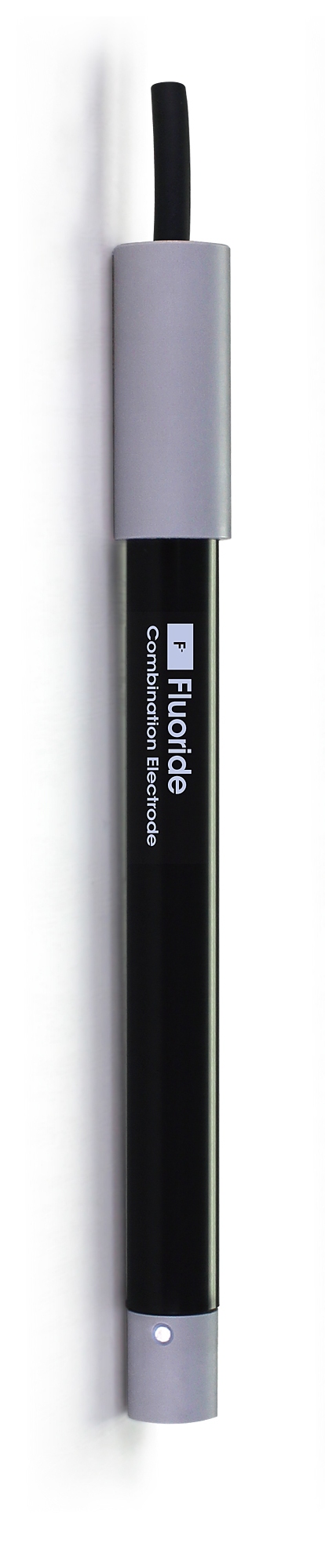

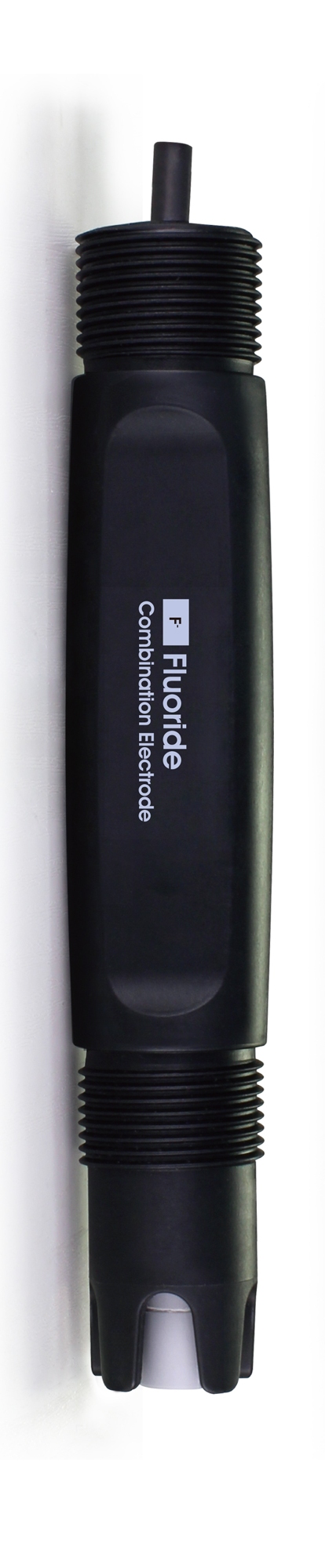

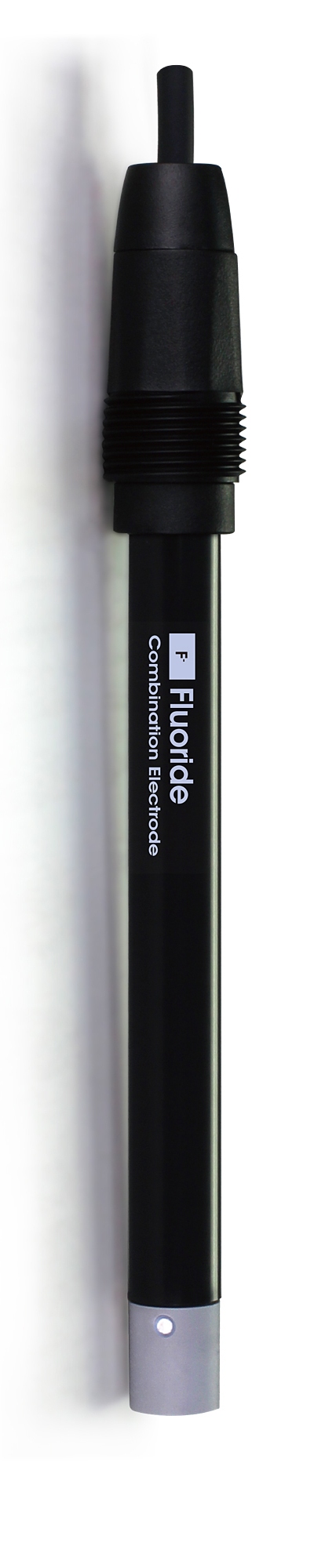

| CS6210F | CS6510F | CS6710F | Fluoride ( F- ) A Fluoride Ion Selective Electrode sensor | |
| Lab | Process | Process | Slope | 56 ± 2 mV between 10-100 ppm @ 25°C |
| PG13.5 | NPT 3/4" | Reproducibility | ± 2% | |
 |
 |
 |
Interferences | OH-1 |
| Complexation | Al+3, Fe+3, H+1 | |||
| Temp. Range | 0 to 80° C (if calibrated at that temp.) | |||
| Pressure Range | 0 to 70 psi | |||
| Response Time | 95% response in 30 seconds | |||
| Storage | Long term, store dry; Short term, store in dilute fluoride standard with TISAB added | |||
| Concentration Range | 0.02 ppm to Saturated (1 x 10-6 M to Saturated) |
|||
| pH Range | 5 to 8 pH | |||
| Resistance | 100 to 200 kiloohms | |||
| Care, Maintenance & Cleaning | Polish with polishing strips Treat with a dilute ISA |
|||
| Isopotential Point | 20 ppm | |||
| On-Line Capability | Yes, pH control required | |||
| Applications | Drinking Water, Wastewater and Natural Waters, Air and Stack Gases, Acids, Sea Water, Minerals, Soils, Foods, Biological Fluids, Toothpaste | |||
