The Magnesium Ion Selective Electrode sensor is designed to provide greater accuracy in water hardness, drilling muds, mining, drinking water, mineral water, and sea water. The Mg2+ ISE can also be accurately applied to monitoring total water hardness titrations.
Model
Specifications

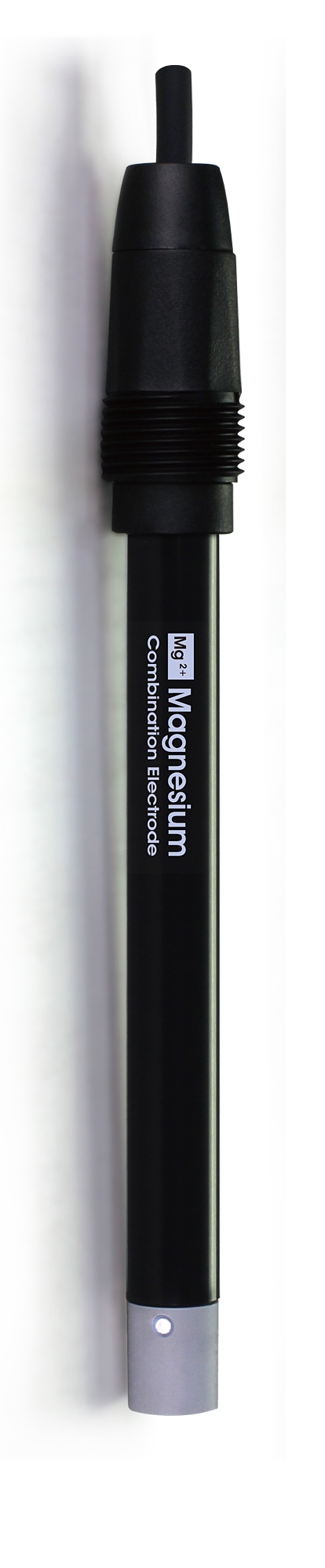

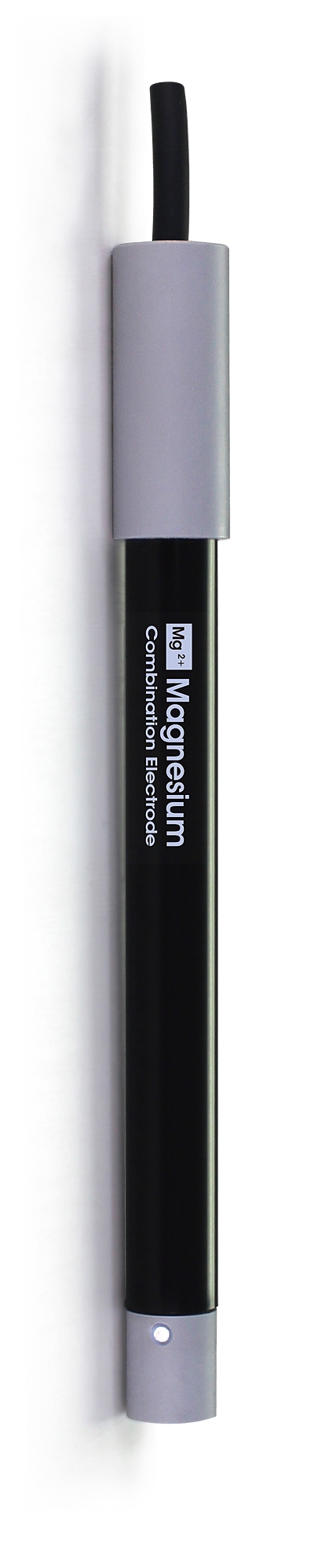

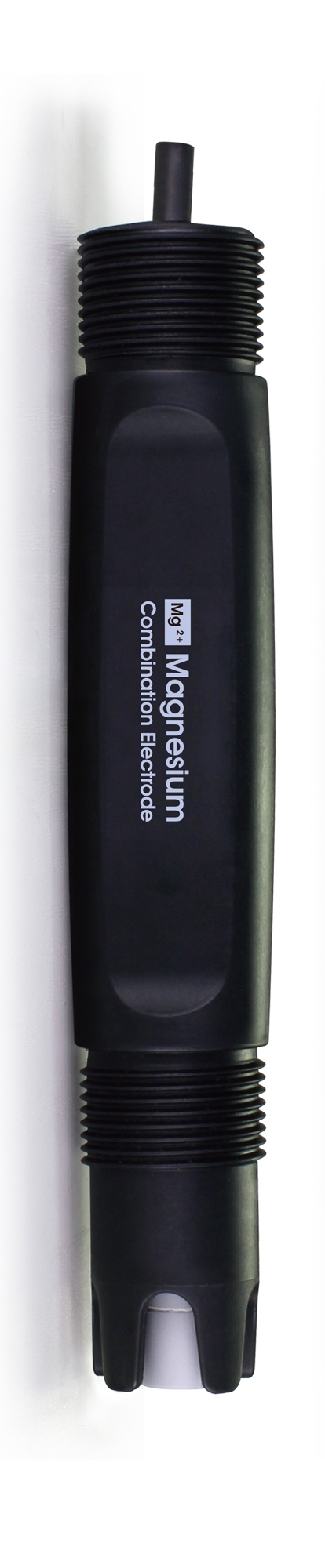

| CS6210Mg | CS6510Mg | CS6710Mg | ( Mg2+ ) A Magnesium Ion Selective Electrode | |
| Lab | Process | Process | Slope | 25 ± 3 mV between 10-100 ppm at 25°C |
| PG13.5 | NPT 3/4" | Reproducibility | ± 2% | |
 |
 |
 |
Interferences | Cu2+, Ni2+, Zn2+, Fe2+ |
| Tempe. Range | 0 to 40°C (if calibrated at that temp.) | |||
| Pressure Range | 0 to 30 psi | |||
| Response Time | 95% response in 30 seconds | |||
| Storage | Long term, store dry; Short term, store in dilute Magnesium standard | |||
| Concentration Range | 0.1 ppm to 30,000 ppm | |||
| pH Range | 3 to 10 pH | |||
| Resistance | 100 megaohms | |||
| Care, Maintenance & Cleaning | Treat with distilled water followed by Magnesium standard | |||
| Isopotential Point | 1 ppm | |||
| On-Line Capability | Yes | |||
| Applications | Water Softening Systems, Drinking and Mineral Waters, Sea Water, | |||
