Lab & Field ORP Sensors
Model
Specifications
CS2215 Solid Piercing pH combination sensor
For soil,etc..
PA+GF body +316L Stainless Piercing Blade
ORP Range:-2000mV – 2000mV
Sensitive membrane: Pt
Temp. Range: 0 - 80°C
Internal Ref.: Ag/AgCl / KCl
Liquid Junction: Cloth
Piercing depth:≥28mm
Length: 120mm
Dia: 12mm
Cable: 1m, BNC

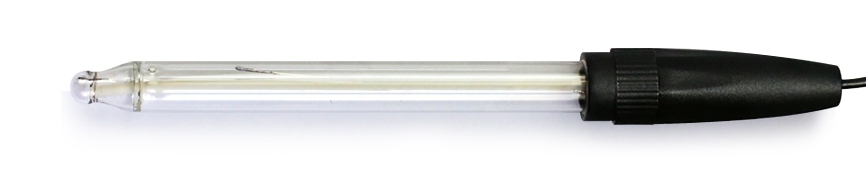

CS2020 ORP sensor CS2020 ORP sensor
General purpose
Glass body
Range: -2000mV-2000mV
Temp. Range: 0 - 80℃
Pressure: 0-20 bar
Internal Ref.: Ag/AgCl / KCl
Sensitive membrane: Platinum ring
Length: 120mm
Dia: 12mm
Cable: 1m, BNC

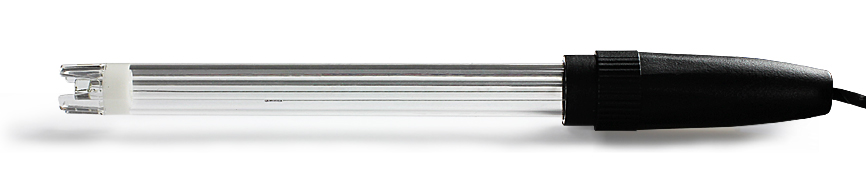

CS2010 ORP sensorCS2010 Combination Platinum Redox / ORP sensor
General purpose
PC clear body
Range: -1000mV-1000mV
Temp. Range: 0 - 80℃
Ag/Agcl KCL Ref. Silica gel double core
       liquid junction
Sensitive film part no.: Pt.
Length: 120mm
Dia: 12mm
Cable: 1m, BNC
