An Ion Selective Electrode sensor specifically designed to measure 0.1ppm to Saturated (5x10-6M to Saturated) concentrations of NH4.
Applications inclue, but not limited to: Boiler Feed Water, Natural Waters, Fertilizers.
Applications inclue, but not limited to: Boiler Feed Water, Natural Waters, Fertilizers.
Model
Specifications

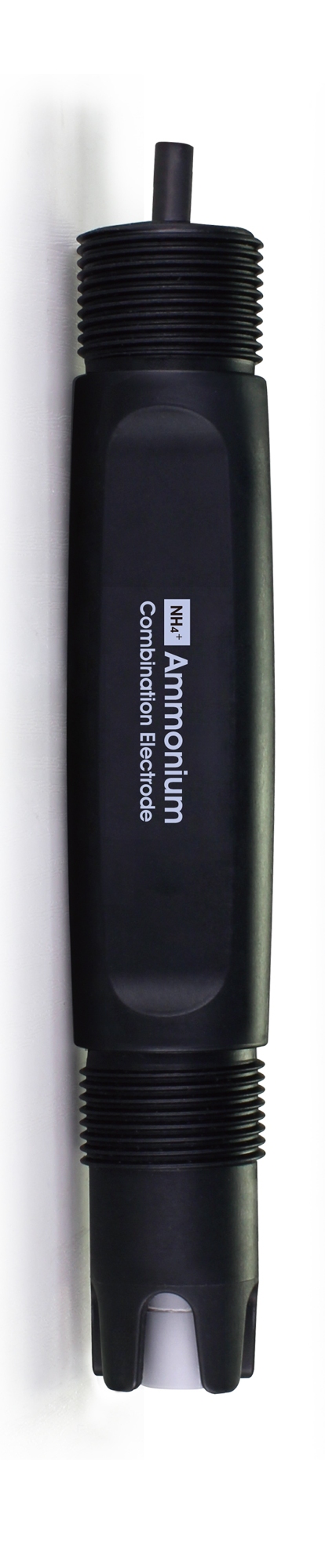

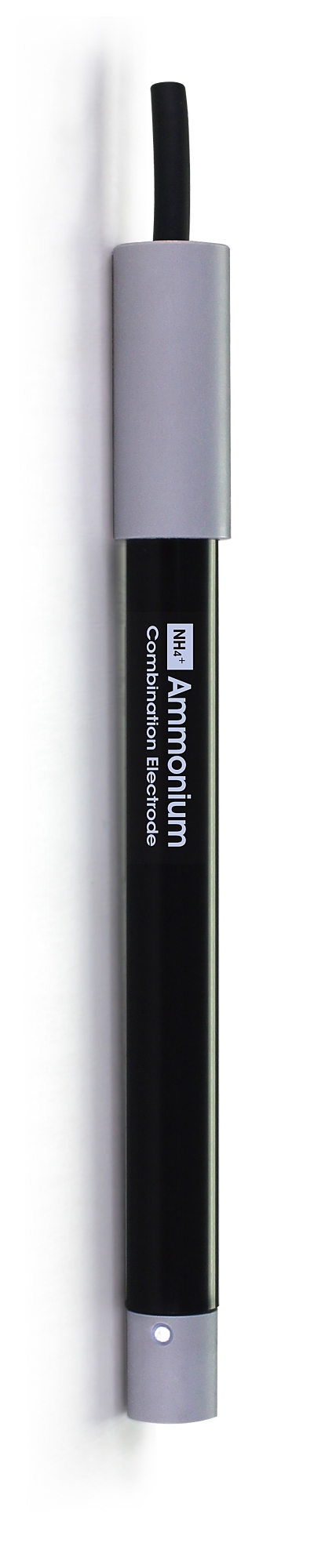

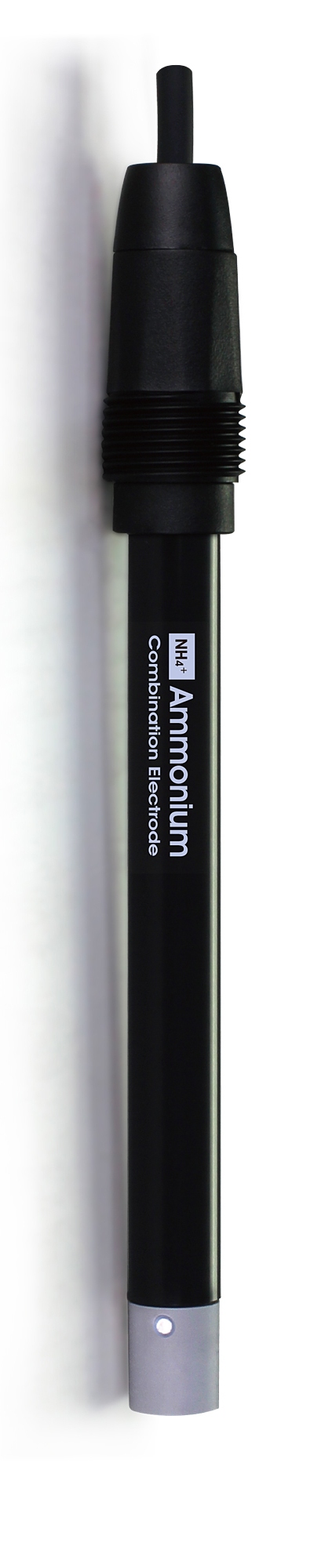

| CS6210NH4 | CS6510NH4 | CS6710NH4 | Ammonium ( (NH4+ ) An Ion Selective Electrode sensor | |
| Lab | Process | Process | Slope | 52 to 59 mV between 10-100 ppm 25°C |
| PG13.5 | NPT 3/4" | Reproducibility | ± 2% | |
 |
 |
 |
Interferences | K+1 |
| Temp. Range | 0 to 40° C (if calibrated at that temp.) | |||
| Pressure Range | 0 to 30 psi | |||
| Response Time | 95% response in 30 seconds | |||
| Storage | Long term, store dry;Short term, store in dilute ammonium standard | |||
| Concentration Range | 0.1 ppm to Saturated (5 x 10-6 M to Saturated) |
|||
| pH Range | 4 to 10 pH | |||
| Resistance | 100 megaohms | |||
| Care, Maintenance & Cleaning | Treat with distilled water followed by ammonium standard | |||
| Isopotential Point | 10 ppm | |||
| On-Line Capability | Yes | |||
| Applications | Boiler Feed Water, Natural Waters, Fertilizers | |||
