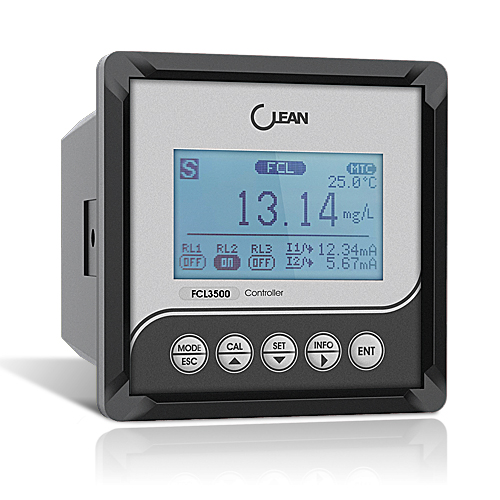

FCL3500 Controller / Transmitter
FCL3500 Free Chlorine Controller / Transmitter
with pH Compensation
It is suitable for online measurement and control of disinfectant dosing in water industry,
swimming pool, water park, secondary water supply and other fields. Disinfection of medical
wastewater is not applicable due to complex componentswith pH Compensation
●128 * 64 dot-matrix LCD display, switchable in Chinese and English, IP65 protection level, all-weather stable operation
●simple menu design, simple and convenient operation, graphical prompt, beautiful and clear interface
●software digital filtering is adjustable, with enhanced hardware resistance to interference, making measurements more stable and adapted to complex industrial environments
●global access power supply 85~260VAC, but also customized DC model 18 to 36 V D C
●RS-485 digital interface, MODBUS-RTU communication protocol, read and write two-way communication, can achieve remote complete control of the instrument

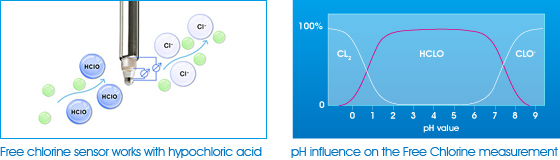

●The residual chlorine and pH two parameters were measured simultaneously, and the compensation was calculated automatically
 |
 |
 |
 |
| Waterworks | Drinking water | Swimming pool | Food hygiene |
| hypochloric acid | measuring range | 0.00～20mg/L.00 |
| resolution ratio | 0.01 mg/L | |
| Measurement accuracy (electronic unit) | ±0.10 mg/L | |
| pH value | measuring range | 0.00～14.00 pH |
| resolution ratio | 0.01 pH | |
| Measurement accuracy (electronic unit) | ±0.01 pH | |
| input impedence | ≥1012Ω | |
| temperature | measuring range | -10.0～130.0℃ |
| resolution ratio | 0.1℃ | |
| certainty of measurement | ±0.3℃ | |
| Temperature input | PT1000 | |
| temperature compensation | Automatic / manual | |
| Transfer current | Output, type | Two roads of 4~20 mA (the corresponding range can be set) |
| Current accuracy | ±1% F .S | |
| output loading | less-than 500Ω | |
| control | Functional relay | One (which can be set to the cleaning or alarm function) |
| Switch relay | 2 SPST relays | |
| load capacity | 2.5A 230VAC | |
| data transmission | Interface Circuit | All-way RS485 isolation voltage is 2500Vrms |
| protocol | MODBUS - RTU (read-write two-way communication) | |
| Other parameters | working power supply | 85~260VAC or 18~36VDC (optional before order) |
| working temperature | 0～60℃ | |
| Work humidity | Relative humidity was <90% | |
| levels of protection | IP65 | |
| way to install | Panel mount | |
| outline dimension | (H×W×D) 108×108×132 mm | |
| Open hole size | 92.5 * 92.5 mm (positive tolerance) |
| Model | Specification | images |

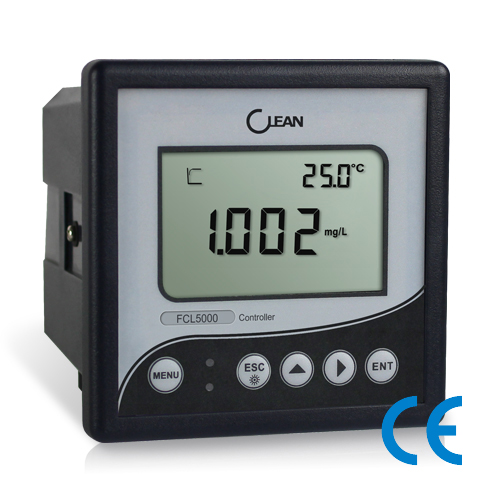

| FCL5000 | Free Chlorine Controller / Transmitter |  |
| CS5530 | Process Free Chlorine Sensor |  |
| CS5520 | Process Free Chlorine Sensor |  |
