PH2000 2-Wire Transmitter
PH2000 2-Wire pH / ORP Transmitter
Designed for all-weather precise pH / ORP signal transmittance at complex industrial sites. Two-wire design, Symmetrical input, isolated input and output ensures clear, uninterrupted data transmission even in electrical interference environment. PH2000 is your smart choice.
●2-Wire design, remarkably saving cost and space, Isolated input and output.
●User define scaleable 4-20mA outputs for pH/ORP.
●Verify output current online.
●Under measurement range: signal output 3.80mA; Over measurement range: signal output
21.00mA.
●Large LCD, with high luminance LED backlight.
●Menu-driven program that simplifies set-up.
●IP65 rated, waterproof and low current, applicable in extreme conditions as in pharmaceutical,
ferment,petroleum, chemical and light industry process.
●Optimum protection against electromagnetic interference.
●Glass electrode and antimony electrode are selectable to meet different industrial situations or
HF(hydrofluoric acid) measurement situation.
●Power: 24VDC
●User define scaleable 4-20mA outputs for pH/ORP.
●Verify output current online.
●Under measurement range: signal output 3.80mA; Over measurement range: signal output
21.00mA.
●Large LCD, with high luminance LED backlight.
●Menu-driven program that simplifies set-up.
●IP65 rated, waterproof and low current, applicable in extreme conditions as in pharmaceutical,
ferment,petroleum, chemical and light industry process.
●Optimum protection against electromagnetic interference.
●Glass electrode and antimony electrode are selectable to meet different industrial situations or
HF(hydrofluoric acid) measurement situation.
●Power: 24VDC
 |
 |
 |
 |
| Industrial process | Boiler water | Circulating water | Cooling Water |
| pH | Range | -2.00-16.00 pH |
| Resolution | 0.01 pH | |
| Accuracy | ±0.01 pH | |
| Signal Input Impedance | ≥1012 Ω | |
| ORP | Range | -2000~2000 mV |
| Resolution | 1 mV | |
| Accuracy | ±1 mV | |
| Temperature | Temperature Range | -10.0~110.0 °C |
| Resolution | 0.1 °C | |
| Precision | ±0.3 °C | |
| Temperature Sensor | Pt1000 | |
| Temperature Compensation | Automatic/Manual | |
| Signal Output/load | Signal Output | 4-20 mA (Adjustable) |
| Current Accuracy | 1%FS | |
| Load | <500 Ω | |
| Under measurement range | signal output 3.80mA | |
| Over measurement range | signal output 21.00mA | |
| Others | Power | 24 VDC |
| Working Temperature | 0~60°C | |
| Humidity | < 90% | |
| IP Rated | IP65 | |
| Installation | Panel Mounting | |
| Dimensions | (H×W×D) 108×108×158 mm | |
| Panel Cut Size | 94.5×94.5 mm | |
| Weight | 0.5 kg | |
| Model | Specification | images |

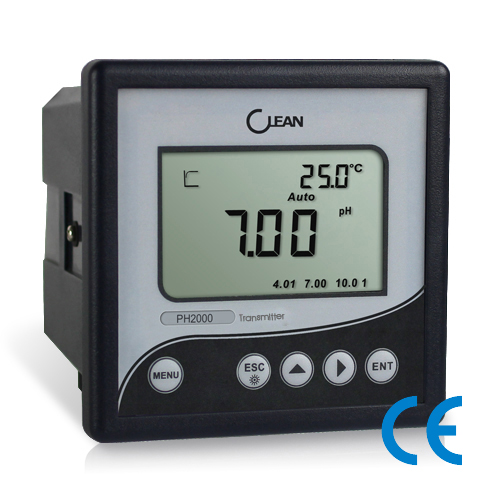

| PH2000 | pH/ORP Controller/Transmitter |  |
| CS1540 pH sensor | Waste water |  |
| CS1543 pH sensor | General Purpose |  |
| CS1546 pH sensor | High Temperature |  |
| CS1568 pH sensor | General Purpose |  |
| CS1668 SNEX pH sensor | General Purpose |  |

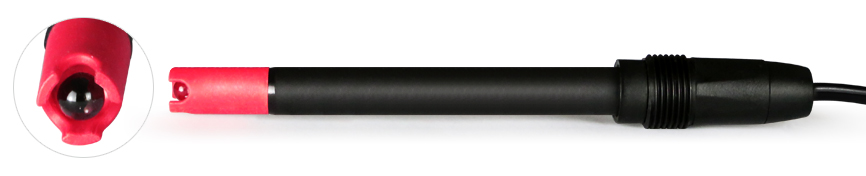

| CS1688 SNEX pH sensor | Ultra-pure Water |  |

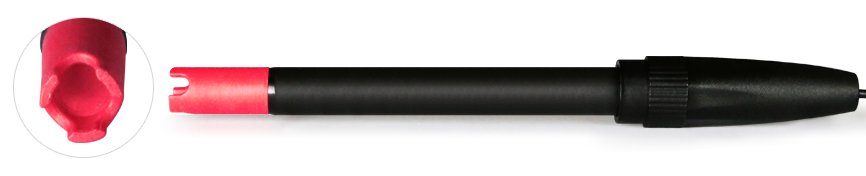

| CSR168 SNEX pH sensor |  |
|
| CS1768 SNEX pH sensor | General Purpose |  |
| CS1778 SNEX pH sensor | Resisting Sulphides Resisting |  |
| CS1788 SNEX pH sensor | Ultra-pure Water |  |

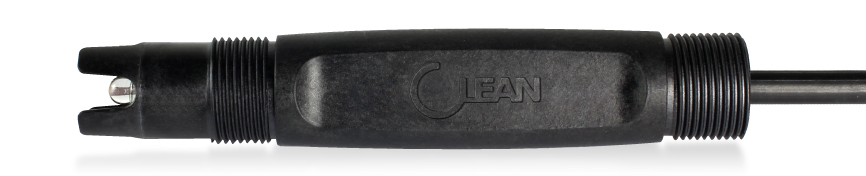

| CS1733 pH sensor | General Purpose |  |

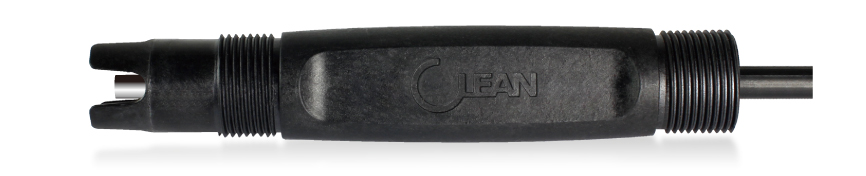

| CS1737 pH sensor | General Purpose |  |
| CS1753 pH sensor | General Purpose |  |
| CS1755 pH sensor | Sea Water |  |
| CS1759 pH sensor | Complex Environment |  |
| CS1759L pH sensor | Low Ion Concentration | |
| CS1759T pH sensor | Gas Desulfurization Precess | |
| CS2543 pH sensor | General Purpose |  |

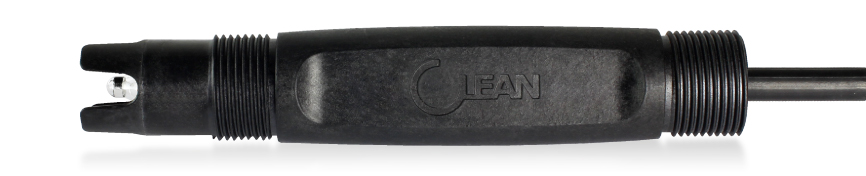

| CS2733 ORP sensor | General Purpose |  |
| CS2755ORP sensor | Sea Water |  |
| CS2668 SNEX ORP sensor | Water quality, Seawater, Swimming Pool, Sewage |  |
| CS2768 SNEX ORP sensor | Water quality, Seawater, Swimming Pool, Sewage |  |
