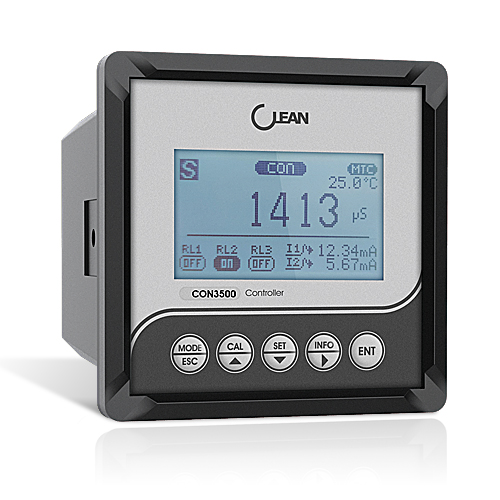

CON3500 Controller / Transmitter
CON3500 Conductivity / TDS / Salinity
It is suitable for accurate measurement of conductivity, salinity, total solid dissolution in harsh
climate and complex industrial environment.
●128 * 64 dot-matrix LCD display, switchable in Chinese and English, IP65 protection level,
all-weather stable operation
●Simple menu design, simple and convenient operation, graphical prompt, beautiful and clear interface
●Software digital filtering is adjustable, with enhanced hardware resistance to interference, making measurements more stable and adapted to complex industrial environments
●Global access power supply 85~260VAC, but also customized DC model 18 to 36 VDC
●RS-485 digital interface, MODBUS-RTU communication protocol, read and write two-way communication, can achieve remote complete control of the instrument
●Three measurement modes CON (conductivity) SAL (salinity) or TDS (total dissolved solids)
●Simple menu design, simple and convenient operation, graphical prompt, beautiful and clear interface
●Software digital filtering is adjustable, with enhanced hardware resistance to interference, making measurements more stable and adapted to complex industrial environments
●Global access power supply 85~260VAC, but also customized DC model 18 to 36 VDC
●RS-485 digital interface, MODBUS-RTU communication protocol, read and write two-way communication, can achieve remote complete control of the instrument
●Three measurement modes CON (conductivity) SAL (salinity) or TDS (total dissolved solids)
 |
 |
 |
 |
| Ultra pure water | Industrial process | Boiler water | Circulating water |
| Conductivity | Range | 0.000uS/cm～400.0mS/cm |
| Resolution | 0.001uS/cm～0.1mS/cm | |
| Accuracy | ±0.5%F.S | |
| Electrode constant | K=0.01、0.1、1.0、10.0 | |
| Reference temp. | 15.0～35.0 °C | |
| Temp. coefficient | 0.00～4.00% | |
| Salinity | Range | -10.0～130.0 °C |
| Resolution | 0.1g/L | |
| Accuracy | ±0.5%F.S | |
| TDS | Range | 0.000mg/L～200.0mg/L |
| Total dissolved solids | Resolution | 0.001mg/L～0.1mg/L |
| Accuracy | ±0.5%F.S | |
| TDS factor | 0.40～1.00 | |
| Temperature | Range | -10.0～130.0 ℃ |
| Resolution | 0.1 ℃ | |
| Accuracy | ±0.3 ℃ | |
| Temp. input | PT1000 | |
| Temp. compensation | Automatic/Manual | |
| Output type | wo 4～20 mA (Corresponding range can be set) | |
| Transmission current | Accuracy | ±0.5 %FS |
| Output load | Less than 500 Ω | |
| Function relay | 1 （Can be set as cleaning or alarm function） | |
| Relay control | Switch relay | 2 SPST relays |
| Load capacity | 2.5A 230VAC | |
| Transmission interface | 1 RS485 Isolation voltage 2500Vrms | |
| Data transmission | Protocol | MODBUS-RTU (Read and write duplex communication) |
| Power supply | 85～260VAC or 18～36VDC（User can order） | |
| Operating temperature | 0～60°C | |
| Working humidity | Relative humidity < 90% | |
| Protection level | IP65 | |
| Installation method | Dial installation | |
| Dimensions | (H×W×D) 108×108×132 mm | |
| Hole Size | 92.5×92.5 mm（Positive tolerance） |
