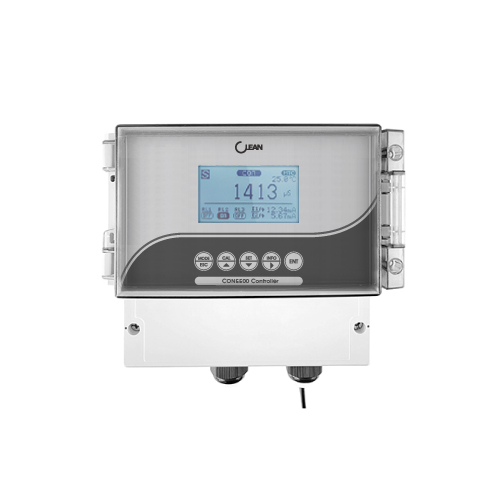

CON5500 Controller / Transmitter
Conductivity/Resistivity/TDS Controller/Transmitter
CON5500 Conductivity / TDS / Salinity
Conductivity / TDS / Salinity Controller / Transmitter
Designed for precise Conductivity / TDS / Salinity control at complex industrial sites and unique housing design provides lower installation cost and easy operation. RS-485 output. CON5500 is your perfect wall-mounting Controller / Transmitter with Large luminant LCD screen for easy reading.
128 * 64 dot-matrix LCD display, switchable in Chinese and English, IP65 protection level, all-weather stable operation
Simple menu design, simple and convenient operation, graphical prompt, beautiful and clear interface
Software digital filtering is adjustable, with enhanced hardware resistance to interference, making measurements more stable and adapted to complex industrial environments
Global access power supply 85~260VAC, but also customized DC model 18 to 36 VDC
RS-485 digital interface, MODBUS-RTU communication protocol, read and write two-way communication, can achieve remote complete control of the instrument
Three measurement modes CON (conductivity) SAL (salinity) or TDS (total dissolved solids)
Ultra-pure water Industrial process Boiler water Circulating water
Ultra pure water Industrial process Boiler water Circulating water
Conductivity Range 0.000uS/cm~400.0mS/cm
  Resolution 0.001uS/cm~0.1mS/cm
  Accuracy ±0.5%F.S
  Electrode constant K=0.01、0.1、1.0、10.0
  Reference temp. 15.0~35.0 °C
  Temp. coefficient 0.00~4.00%
Salinity Range -10.0~130.0 °C
  Resolution 0.1g/L
  Accuracy ±0.5%F.S
TDS Range 0.000mg/L~200.0mg/L
Total dissolved solids Resolution 0.001mg/L~0.1mg/L
  Accuracy ±0.5%F.S
  TDS factor 0.40~1.00
Temperature Range -10.0~130.0 ℃
  Resolution 0.1 ℃
  Accuracy ±0.3 ℃
  Temp. input PT1000
  Temp. compensation Automatic/Manual
  Output type wo 4~20 mA (Corresponding range can be set)
Transmission current Accuracy ±0.5 %FS
  Output load Less than 500 Ω
  Function relay 1 (Can be set as cleaning or alarm function)
Relay control Switch relay 2 SPST relays
  Load capacity 2.5A 230VAC
  Transmission interface 1 RS485 Isolation voltage 2500Vrms
Data transmission Protocol MODBUS-RTU (Read and write duplex communication)
  Power supply 85~260VAC or 18~36VDC(User can  order)
  Operating temperature 0~60°C
  Working humidity Relative humidity < 90%
  Protection level IP65
  Installation method Wall mounted installation
  Dimensions (H×W×D) 158×188×108 mm
Model Specification images
CON5500 Conductivity /Salinity /TDS Controller/Transmitter
