DO2000 2-Wire Transmitter
DO2000 2-Wire Dissolved Oxygen Transmitter
High-quality 2-Wire technology for DO2000 with unrivaled functionality. Broadly used in fermentation, pharmaceutical and complex industrial process. Isolated input and output ensures clear, uninterrupted signal transmittance for hazardous and safe area applications. Its your reliable choice.
●2-Wire design, remarkably saving cost and space, Isolated input and output.
●User define scaleable 4-20mA outputs for pH/ORP.
●Verify output current online.
●Under measurement range: signal output 3.80mA; Over measurement range: signal output
21.00mA.
●Large LCD, with high luminance LED backlight.
●Menu-driven program that simplifies set-up.
●IP65 rated, waterproof and anti-gas, applicable in extreme conditions.
●Optimum protection against electromagnetic interference.
●Power: 24VDC.
●Optional nanoampere electrode (80nA, 400nA)
●User define scaleable 4-20mA outputs for pH/ORP.
●Verify output current online.
●Under measurement range: signal output 3.80mA; Over measurement range: signal output
21.00mA.
●Large LCD, with high luminance LED backlight.
●Menu-driven program that simplifies set-up.
●IP65 rated, waterproof and anti-gas, applicable in extreme conditions.
●Optimum protection against electromagnetic interference.
●Power: 24VDC.
●Optional nanoampere electrode (80nA, 400nA)
 |
 |
 |
 |
| Aquaculture | Industrial process | Boiler water | Circulating water |
| Dissolved Oxygen | Range | 0.0-400.0% , 0.00-40.00 mg/L |
| Resolution | 0.1% , 0.01 mg/L | |
| Accuracy | 0.0-40.0 ppt | |
| Salinity Compensation | 0.2% F.S. | |
| Temperature Compensation | 0.0-50.0 C | |
| Pressure Compensation | 600-2000 mBar | |
| Temperature | Range | -10.0-110.0 C |
| Resolution | 0.1°C | |
| Accuracy | 0.3 C | |
| Temperature Sensor | 22 K | |
| Temperature Compensation | Automatic | |
| Signal Output/load | Signal Output | 4-20 mA (Adjustable) |
| Current Accuracy | 1% F.S. | |
| Load | < 500 O | |
| Under measurement range | signal output 3.80mA | |
| Over measurement range | signal output 21.00mA | |
| Others | Power | 24 VDC |
| Working Temperature | 0~60°C | |
| Humidity | < 90% | |
| IP Rated | IP65 | |
| Installation | Panel Mounting | |
| Dimensions | (H×W×D) 108×108×158 mm | |
| Panel Cut Size | 94.5×94.5 mm | |
| Weight | 0.5 kg | |
| Model | Specification | images |

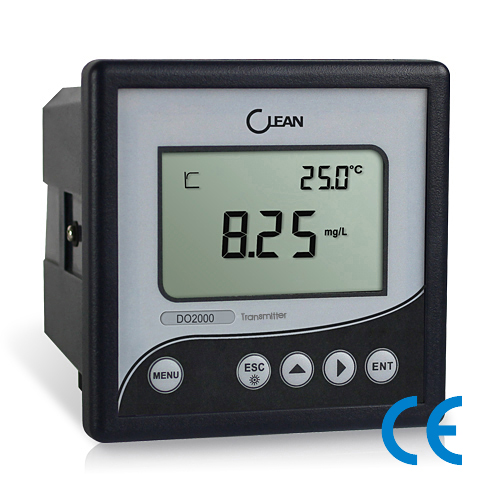

| DO2000 | Dissolved Oxygen Controller/Transmitter |  |

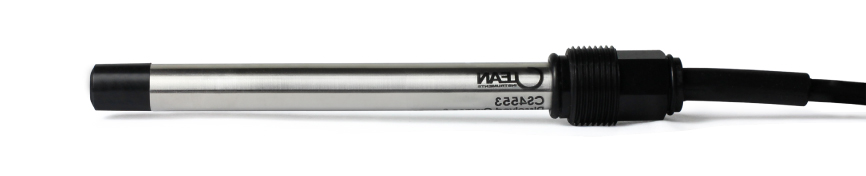

| CS4553 | Dissolved Oxygen Sensor |  |

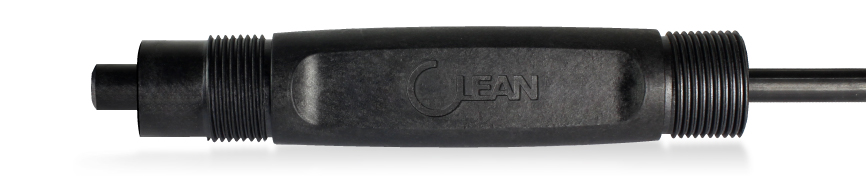

| CS4753 | Dissolved Oxygen Sensor |  |
| CS45533H1E | Replacement membrane cap&electrolyte Kit |  |
