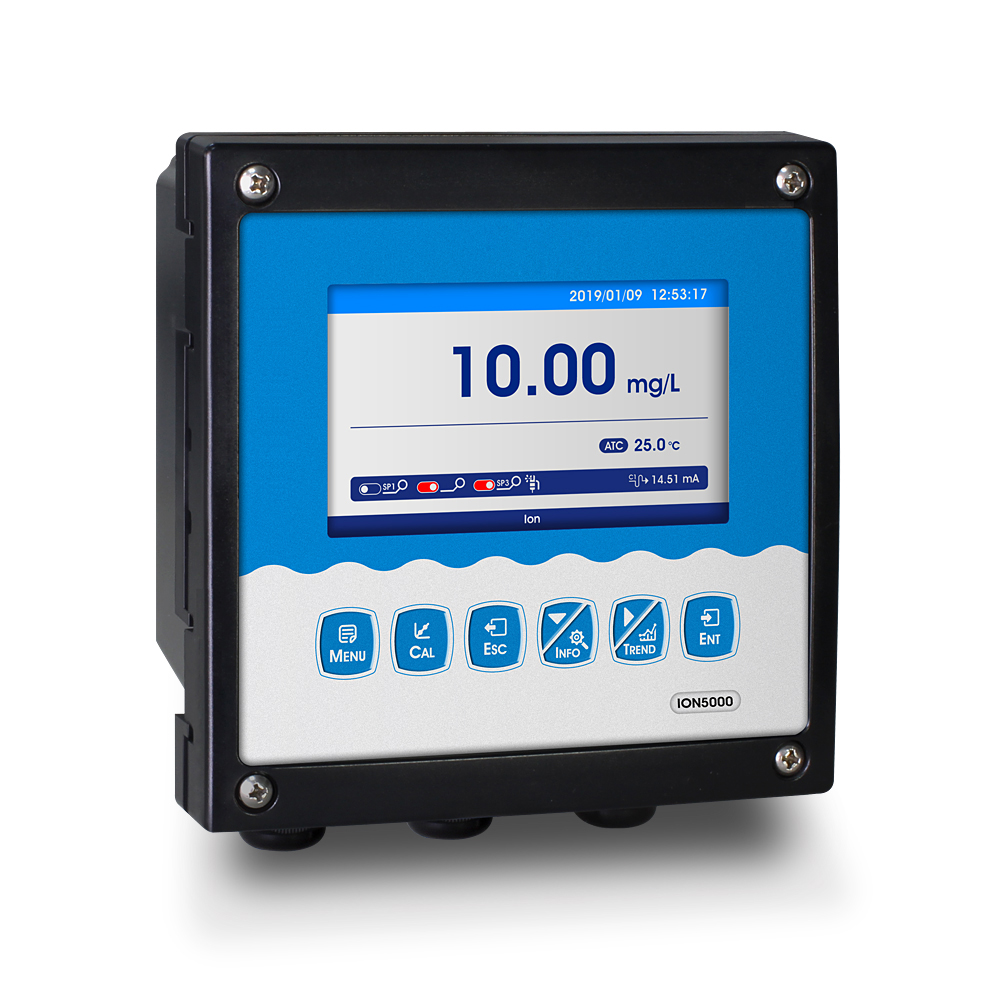

ION5000 Online Ion Analyzer
ION5000 Online Ion Analyzer
Online Ion meter is a microprocessor-based water quality online monitoring control
instrument. The instrument is widely used in industrial waste water, surface water, drinking
water, sea water, and industrial process control ions on-line automatic testing and
analysis, etc.Continuously monitor and control ,Ion concentration and temperature of
aqueous solution.
● 90*50 mm Large color LCD display
● Data Recording /Curve display/Data upload function
● Multiple automatic calibration
● Double high resistance measurement mode, stable and reliable
● Manual and automatic temperature compensation
● Three relay control switches
● High & low alarm and hysteresis control
● 4-20mA x2 &RS485 Multiple output modes
● Multi parameter display simultaneously shows
● Password protection to prevent misoperation by non-staff
● Data Recording /Curve display/Data upload function
● Multiple automatic calibration
● Double high resistance measurement mode, stable and reliable
● Manual and automatic temperature compensation
● Three relay control switches
● High & low alarm and hysteresis control
● 4-20mA x2 &RS485 Multiple output modes
● Multi parameter display simultaneously shows
● Password protection to prevent misoperation by non-staff
| Measurement range | 0~99999mg/L(ppm) |
| Measurement Principle | Ion electrode method |
| Resolution | 0.01 ;0.1;1 mg/L(ppm) |
| Basic error | ±2.5% |
| Temperature | 0~50℃ |
| Temperature Resolution | 0.1℃ |
| Temperature Basic error | ±0.3℃ |
| Current outputs | Two 4~20mA,20~4mA,0~20mA |
| Signal output | RS485 MODBUS RTU |
| Other functions | Data record &Curve display |
| Three relay control contacts | 5A 250VAC,5A 30VDC |
| Optional power supply | 85~265VAC,9~36VDC,power consumption≤3W |
| Working conditions | No strong magnetic field interference around except the geomagnetic field. |
| Working temperature | -10~60℃ |
| Relative humidity | ≤90% |
| Waterproof rating | IP65 |
| Weight | 1.0kg |
| Dimensions (W*H*D) | 144×144×118mm |
| Installation methods | Panel Mounting, Wall Mounting |
| type | NPT 3/4" | PG13.5 | Lab | application |
| Fluoride F- | CS6710F | CS6510F | CS6210F | Biological fluid, toothpaste |
| Chloride Cl- | CS6710Cl | CS6510Cl | CS6210Cl | River, plant tissue |
| Ammonium (NH4+) | CS6710NH4 | CS6510NH4 | CS6210NH4 | Boiler water, surface water, fertilizer |
| Ammonia NH3 | CS6712NH3 | CS6512NH3 | CS6212NH3 | High purity water for power plant |
| Nitrogen Oxide NOx. | CS6712NO2 | CS6512NO2 | CS6212NO2 | Solid waste leaching solution, vegetables, pickled products and other agricultural products |
| Carbon Dioxide CO2 | CS6712CO2 | CS6512CO2 | CS6212CO2 | Soft drinks, wine, fermentation |
| Nitrate NO3- | CS6710NO3 | CS6510NO3 | CS6210NO3 | Plant tissue, aquaculture, metallurgy, electroplating, sewage treatment |
| Nitrite NO2- | CS6710NO2 | CS6510NO2 | CS6210NO2 | Solid waste leaching solution, vegetables, pickled products and other agricultural products |
| Sodium ion Na+ | CS6710Na | CS6510Na | CS6210Na | Drinking water, surface water, sea water, tea, honey, feed, milk powder, saliva, serum, urine |
| Potassium K+ | CS6710K | CS6510K | CS6210K | Serum, fertilizer, wine |
| Magnesium Mg2+ | CS6710Mg | CS6510Mg | CS6210Mg | Water hardness, drilling mud, mining, drinking water, mineral water and seawater |
| Calcium Ca2+ | CS6710Ca | CS6510Ca | CS6210Ca | Water softening system, drinking water |
