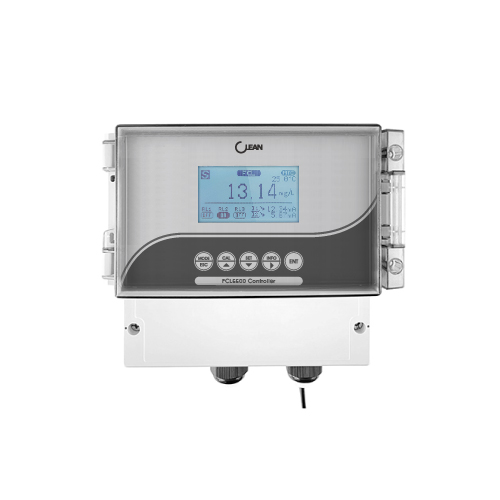

FCL5500 Controller / Transmitter
FCL5500 Free Chlorine Controller / Transmitter
At different pH values, Chlorine forms different species in water. For a reliable free chlorine measurement, it's necessary to take pH and temperature compensation into account.
●128 * 64 dot-matrix LCD display, switchable in Chinese and English, IP65 protection level, all-weather stable operation
●simple menu design, simple and convenient operation, graphical prompt, beautiful and clear interface
●software digital filtering is adjustable, with enhanced hardware resistance to interference, making measurements more stable and adapted to complex industrial environments
●global access power supply 85~260VAC, but also customized DC model 18 to 36 V D C
●RS-485 digital interface, MODBUS-RTU communication protocol, read and write two-way communication, can achieve remote complete control of the instrument
●The residual chlorine and pH two parameters were measured simultaneously, and the compensation was calculated automatically
 |
 |
 |
 |
| Waterworks | Drinking water | Swimming pool | Food hygiene |
| hypochloric acid | measuring range | 0.00～20mg/L.00 |
| resolution ratio | 0.01 mg/L | |
| Measurement accuracy (electronic unit) | ±0.10 mg/L | |
| pH value | measuring range | 0.00～14.00 pH |
| resolution ratio | 0.01 pH | |
| Measurement accuracy (electronic unit) | ±0.01 pH | |
| input impedence | ≥1012Ω | |
| temperature | measuring range | -10.0～130.0℃ |
| resolution ratio | 0.1℃ | |
| certainty of measurement | ±0.3℃ | |
| Temperature input | PT1000 | |
| temperature compensation | Automatic / manual | |
| Transfer current | Output, type | Two roads of 4~20 mA (the corresponding range can be set) |
| Current accuracy | ±1% F .S | |
| output loading | less-than 500Ω | |
| control | Functional relay | One (which can be set to the cleaning or alarm function) |
| Switch relay | 2 SPST relays | |
| load capacity | 2.5A 230VAC | |
| data transmission | Interface Circuit | All-way RS485 isolation voltage is 2500Vrms |
| protocol | MODBUS - RTU (read-write two-way communication) | |
| Other parameters | working power supply | 85~260VAC or 18~36VDC (optional before order) |
| working temperature | 0～60℃ | |
| Work humidity | Relative humidity was <90% | |
| levels of protection | IP65 | |
| way to install | Panel mount | |
| outline dimension | (H×W×D) 158×188×108 mm | |
| Open hole size | 92.5 * 92.5 mm (positive tolerance) |
| Model | Specification | images |
| FCL5500 | Free Chlorine Controller / Transmitter | |
| CS5530 | Process Free Chlorine Sensor |  |
| CS5520 | Process Free Chlorine Sensor |  |
