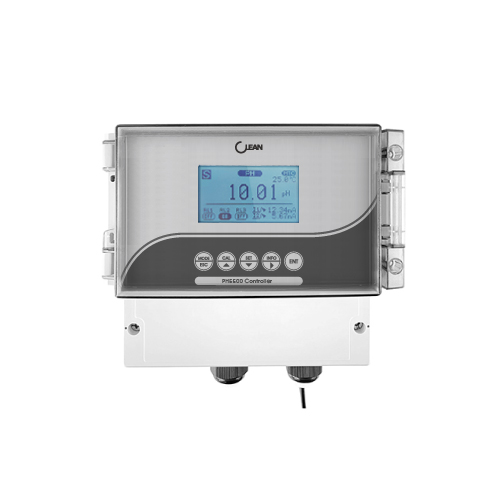

PH5500 Controller / Transmitter
pH/ORP Controller/Transmitter
PH5500 pH / ORP Controller / Transmitter
Designed for precise pH / ORP control at complex industrial sites and unique housing design provides lower installation cost and easy operation. Symmetrical input, RS-485 output. PH5500 is your right wall–mounting Controller / Transmitter with Large luminant LCD screen for easy reading.
Wall mounting
Designed for precise pH/ORP control at complex and harsh environment.
High protection against electromagnetic interference.
NEMA4X, IP65 rated: waterproof and anti-gas
Multiple lines display of LCD screen, optional high luminance LED backlight
Two relay circuits, users can select high-low control freely. Separately adjustable high and low
      set-point hysteresis(dead bands) prevent chattering of relays around the set points.
Third relay Cleaning/Alarm function; users can set the cleaning frequency and time
Scaleable isolated 0/4-20mA Outputs for pH/ORP
Two optional electrode input: balanced input or asymmetric input
Temperature value offset adjustment
Glass electrode and antimony electrode are selectable to meet different industrial situations or
      HF(hydrofluoric acid) measurement situation
Independent setting for process temperature(TST1) and calibration temperature(TST2) in manual
      temperature compensation (MTC) mode.
RS-485 output
Industrial process Boiler water Circulating water Pure water
Industrial process Boiler water Circulating water Pure water
pH Range -2.00-16.00 pH
  Resolution 0.01 pH
  Accuracy ±0.01 pH
  Signal Input Impedance ≥1012 Ω
ORP Range -2000~2000 mV
  Resolution 1 mV
  Accuracy ±1 mV
Temperature Temperature Range -10.0~110.0 °C
  Resolution 0.1 °C
  Precision ±0.3 °C
  Temperature Sensor Pt1000
  Temperature Compensation Automatic/Manual
Signal Output/load Signal Output 4-20 mA (Adjustable)
  Current Accuracy 1%FS
  Load <500 Ω
Data interface RS485 have
Relay Ouput On/Off 2 SPST Relays
  Output 2.5A 230 VAC
  Cleaning/Alarm Relays 1X 2.5A
Others Power 85~260 VAC or 24 VDC
  Working Temperature 0~60°C
  Humidity < 90%
  IP Rated IP65
  Installation Wall Mounting
  Dimensions (H×W×D) 160×188×108 mm
  Panel Cut Size 94.5×94.5 mm
  Weight 0.7 kg

Model Specification images
PH3000 pH/ORP Controller/Transmitter
CS1540 pH sensor Versatile anti- poison Environmental waste water pH sensor
CS1543 pH sensor Pure water, tap water, surface water and waste water
CS1549 pH sensor High Temperature
CS1668 pH combination sensor Sludge, Viscous Fluids Protein, hydrogen sulfide, Cold Low Ionic Water Silicates, Chromates, Cyanide, Sea water, Brine, Mining, Petrochemical, liquefied natural gas.
CS1568 SNEX pH sensor Sludge, Viscous Fluids Protein, hydrogen sulfide, Cold Low Ionic Water Silicates, Chromates, Cyanide, Sea water, Brine, Mining, Petrochemical, liquefied natural gas.
CS1768 pH combination sensor Designed for Harsh Industrial environment Sludge, Viscous Fluids Protein, hydrogen sulfide, Cold Low Ionic Water Silicates, Chromates, Cyanide, Sea water, Brine, Mining, Petrochemical, liquefied natural gas.
CS1778 pH combination sensor Designed for flue gas desulfurization Traditional porous-liquid-junction pH sensors easy to be failured by reference electrode coating and contamination or fine particle clogging, poisoning. CS1778 SNEX pH sensor

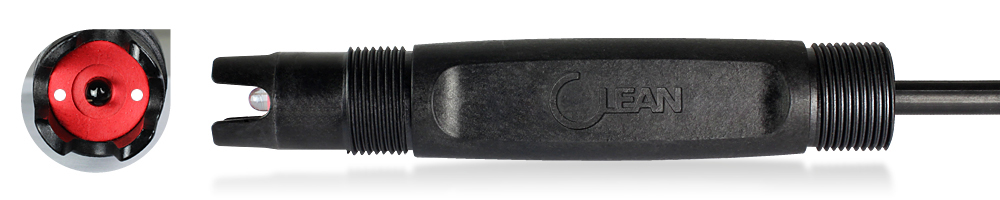

CS1788 pH combination sensor Designed for Ultra-pure Water/ Low ion concentration The red SNEX solid-state reference electrode system sustained releases potassium ion and chlorine ion, in addition to two sets of reference electrolyte permeability pores ensure stable and reliable readings.
CS1628 resistant to HF pH sensor HF concentration<1000ppm
CS1637 pH antimony sensor HF concentration>1000ppm
CS1728 resistant to HF pH sensor HF concentration<1000ppm
CS1737 pH antimony sensor HF concentration>1000ppm
CS1733 pH sensor General purpose
CS1753 pH sensor Process pH sensor with temperature compensation and connect to ground.
CS2543 General purpose Platnium ORP sensor General Purpose
CS2733 Platinum ORP sensor General Purpose
CS2753 ORP sensor Designed for strong oxidative solution
CS2628 SNEX ORP sensor Water quality monitoring, Sea water quality monitoring, Swimming pool, Waste water
CS2668 SNEX ORP sensor Water quality monitoring, Sea water quality monitoring, Swimming pool, Waste water
CS2768 SNEX ORP sensor Complex Industrial environment Anti-poison, long life span ORP sensor.
