Online Turbidity Analyzer

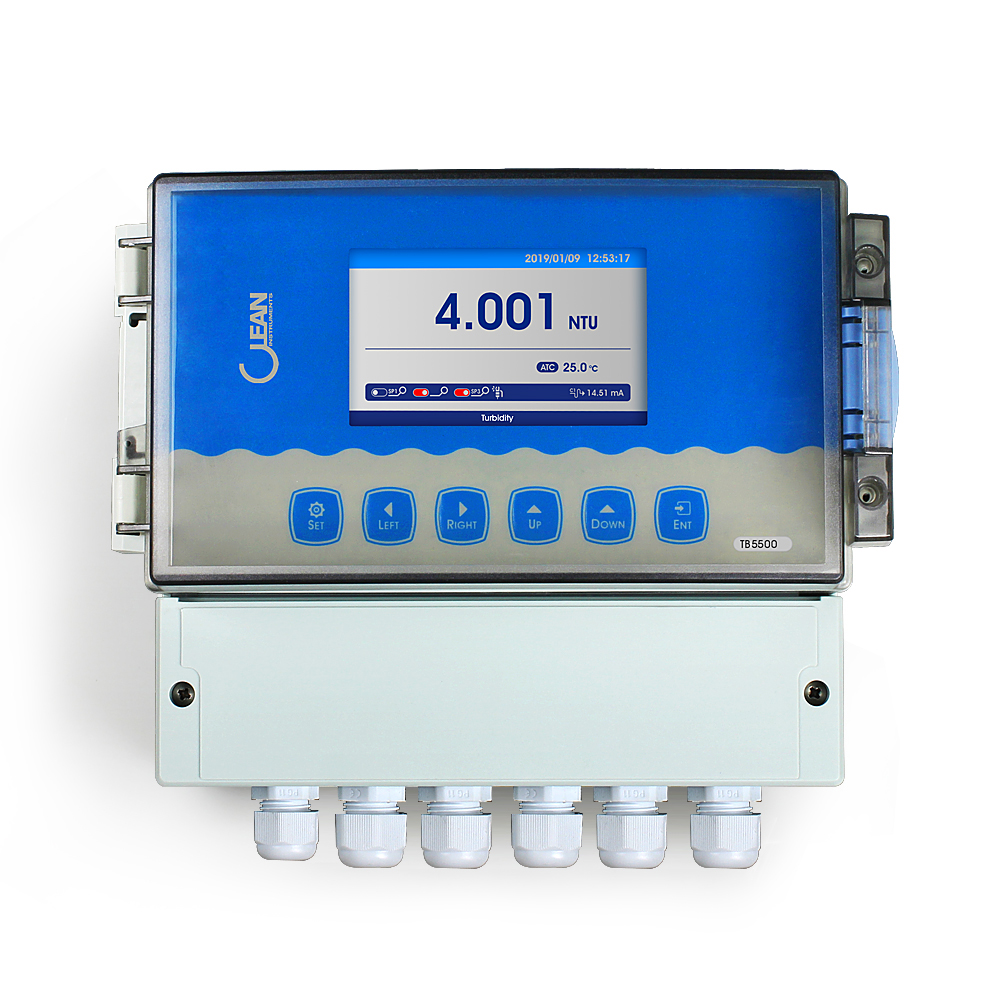

TB5500 Online Turbidity Analyzer
The on-line turbidity meter (hereinafter referred to as the meter) is
an on-line water quality detector with microprocessor.It is an
industrial on-line measuring instrument designed for measuring
turbidity of municipal sewage, industrial wastewater treatment
process, water plant, etc.
● 90*50 mm Large color LCD display
● Data Recording /Curve display/Data upload function
● Multiple automatic calibration
● Double high resistance measurement mode, stable and reliable
● Manual and automatic temperature compensation
● Three relay control switches
● High & low alarm and hysteresis control
● 4-20mA x2 &RS485 Multiple output modes
● Multi parameter display simultaneously shows
● Password protection to prevent misoperation by non-staff
● Data Recording /Curve display/Data upload function
● Multiple automatic calibration
● Double high resistance measurement mode, stable and reliable
● Manual and automatic temperature compensation
● Three relay control switches
● High & low alarm and hysteresis control
● 4-20mA x2 &RS485 Multiple output modes
● Multi parameter display simultaneously shows
● Password protection to prevent misoperation by non-staff
| Measurement range | 0~400~2000~4000NTU |
| Measurement unit | NTU;mg/L |
| Resolution | 0.001NTU |
| Basic error | ±1%F.S |
| Temperature | 0~50℃ |
| Temperature Resolution | 0.1℃ |
| Temperature Basic error | ±0.3℃ |
| Current outputs | Two 4~20mA,20~4mA,0~20mA |
| Signal output | RS485 MODBUS RTU |
| Other functions | Data record &Curve display |
| Three relay control contacts | 5A 250VAC,5A 30VDC |
| Optional power supply | 85~265VAC,9~36VDC,power consumption≤3W |
| Working conditions | No strong magnetic field interference around except the geomagnetic field. |
| Working temperature | -10~60℃ |
| Relative humidity | ≤90% |
| Waterproof rating | IP65 |
| Weight | 1.0kg |
| Dimensions (W*H*D) | 235×185×120mm |
| Installation methods | Wall Mounting |
| Concentration | Low Turbidity: circulation type | |

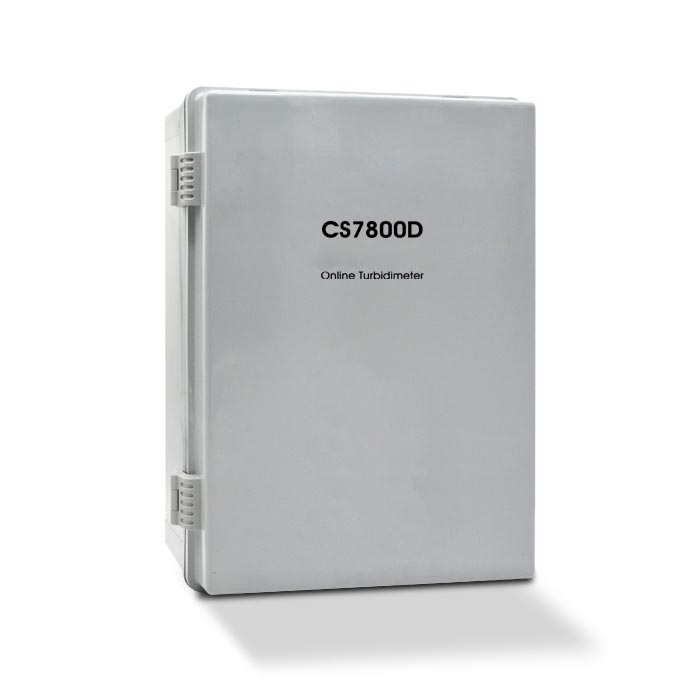

| Sensor Model No. | CS7800D | CS7801D |
| Measurement range | 0～20NTU | 0～200NTU |
 |
||
| Principle | 90°scattering | |
| Light source | 850nm | |
| Housing material | SS316L,POM | |
| Thread | ||
| Cable length | 5m | |
| Connection | terminal | |
| Dimensions | 400*300*170mm | |
| Weight | About 5.5KGS | |
| Installation | Wall-mounted | |
| Flow Tank size | 220*150*80mm | |
| Flow Tank Installlation | Wall-mounted | |
| Flow Tank weight | About 1.0KGS | |
| Concentration | Middle Turbidity | High Turbidity | |||
| Sensor Model No. | CS7820D | CS7821D | CS7830D | CS7832D | CS7833D |
| Measurement range | 0～400NTU | 0～2000NTU | 0～4000NTU | 10-4000NTU, with self-cleanning function |
2-4000NTU, double beam with self-cleanning function |
 |
 |
||||
| Principle | infrared light 90° | infrared light 180° | |||
| Light source | 850nm | 850nm | |||
| Housing material | SS316L,POM | SS316L,POM | |||
| Thread | NPT3/4" | NPT3/4" | |||
| Cable length | 10m | 10m | |||
| Connection | terminal | terminal | |||
| Dimensions | 220* φ50nm | 220* φ50nm | |||
| Weight | |||||
| Installation | Immersed | Immersed | |||
