Online Suspended Solids Analyzer

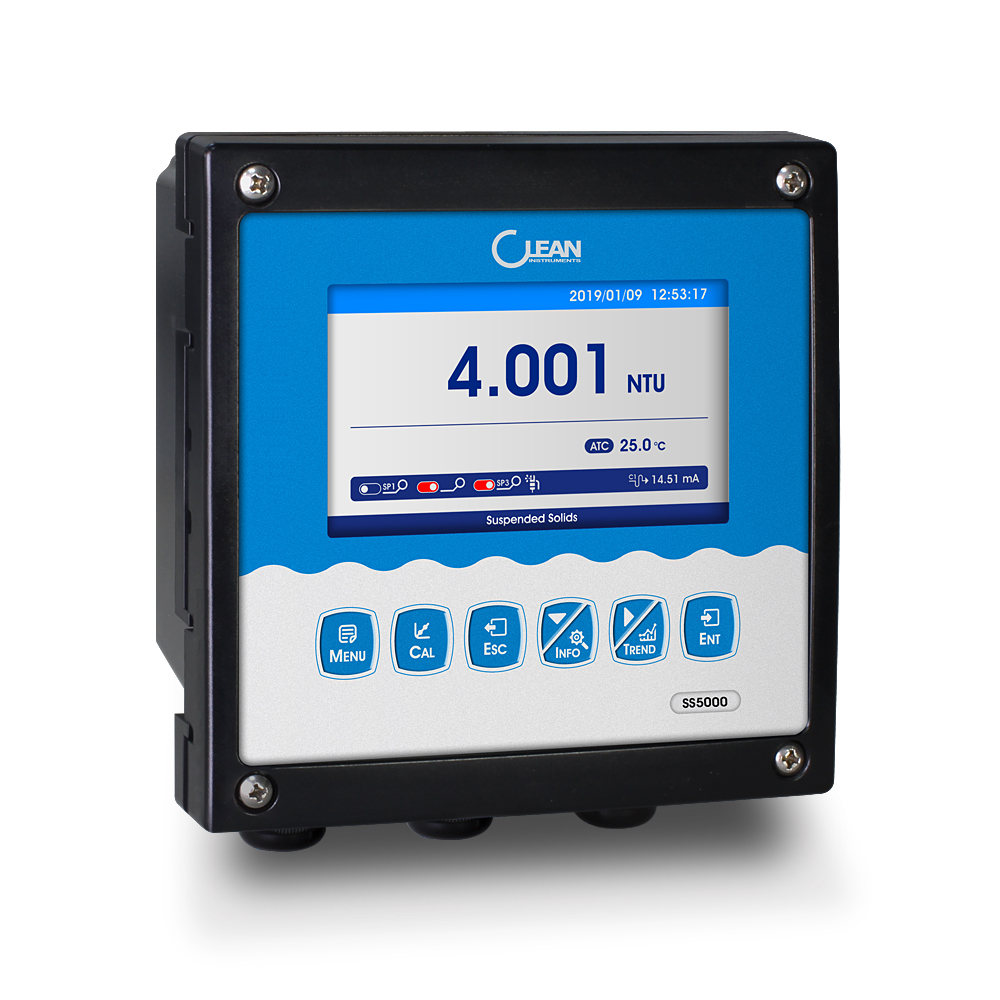

SS5000 Online Suspended Solids Analyzer
Water supply plant (sedimentation tank), paper mill (pulp
concentration), coal washing plant (sedimentation tank),
electric power (slurry sedimentation tank), sewage treatment
plant (inlet and outlet, aeration tank, reflux sludge, primary
sedimentation tank, secondary sedimentation tank, concentration
tank, sludge dewatering).
● 90*50 mm Large color LCD display
● Data Recording /Curve display/Data upload function
● Multiple automatic calibration
● Double high resistance measurement mode, stable and reliable
● Manual and automatic temperature compensation
● Three relay control switches
● High & low alarm and hysteresis control
● 4-20mA x2 &RS485 Multiple output modes
● Multi parameter display simultaneously shows
● Password protection to prevent misoperation by non-staff
● Data Recording /Curve display/Data upload function
● Multiple automatic calibration
● Double high resistance measurement mode, stable and reliable
● Manual and automatic temperature compensation
● Three relay control switches
● High & low alarm and hysteresis control
● 4-20mA x2 &RS485 Multiple output modes
● Multi parameter display simultaneously shows
● Password protection to prevent misoperation by non-staff
| Measurement range | 0～500~5000mg/L ; 0～50~100g/L (can be extended) |
| Measurement unit | mg/L ; g/L |
| Resolution | 0.001mg/L ; 0.1g/L |
| Basic error | ±1%F.S |
| Temperature | 0~50℃ |
| Temperature Resolution | 0.1℃ |
| Temperature Basic error | ±0.3℃ |
| Current outputs | Two 4~20mA,20~4mA,0~20mA |
| Signal output | RS485 MODBUS RTU |
| Other functions | Data record &Curve display |
| Three relay control contacts | 5A 250VAC,5A 30VDC |
| Optional power supply | 85~265VAC,9~36VDC,power consumption≤3W |
| Working conditions | No strong magnetic field interference around except the geomagnetic field. |
| Working temperature | -10~60℃ |
| Relative humidity | ≤90% |
| Waterproof rating | IP65 |
| Weight | 1.0kg |
| Dimensions (W*H*D) | 144×144×118mm |
| Installation methods | Panel Mounting, Wall Mounting |
| Concentration | Low |
| Sensor Model No. | CS7840D |
| Measurement range | 0.1-200mg/L |
 |
|
| Principle | 90°scattering |
| Light source | 850nm |
| Housing material | SS316L,POM |
| Thread | |
| Cable length | 5m |
| Connection | terminal |
| Dimensions | 400*300*170mm |
| Weight | About 5.5KG |
| Concentration | Middle | High | Middle-High | ||
| Sensor Model No. |
CS7850D | CS7851D | CS7860D | CS7862D | CS7863D |
| Range | 2～500mg/L | 2～5000mg/L | 10-50000mg/L | 10-50000mg/L, with self-cleanning function |
2-50000mg/L, double beam with self-cleanning function |
|
 |
||||
| Principle | infrared light 90° | infrared light 180° | |||
| Light source | 850nm | 850nm | |||
| Housing material | SS316L,POM | SS316L,POM | |||
| Thread | G3/4" | G3/4" | |||
| Cable length | 10m | 10m | |||
| Connection | terminal | terminal | |||
| Dimensions | 220* φ50nm | 220*φ50mm | |||
| Weight | 1.2Kg | 1.2Kg | |||
| Installation method | Immersion / submergence | Immersion / submergence | |||
