Online Fluorescence Dissolved Oxygen Analyzer

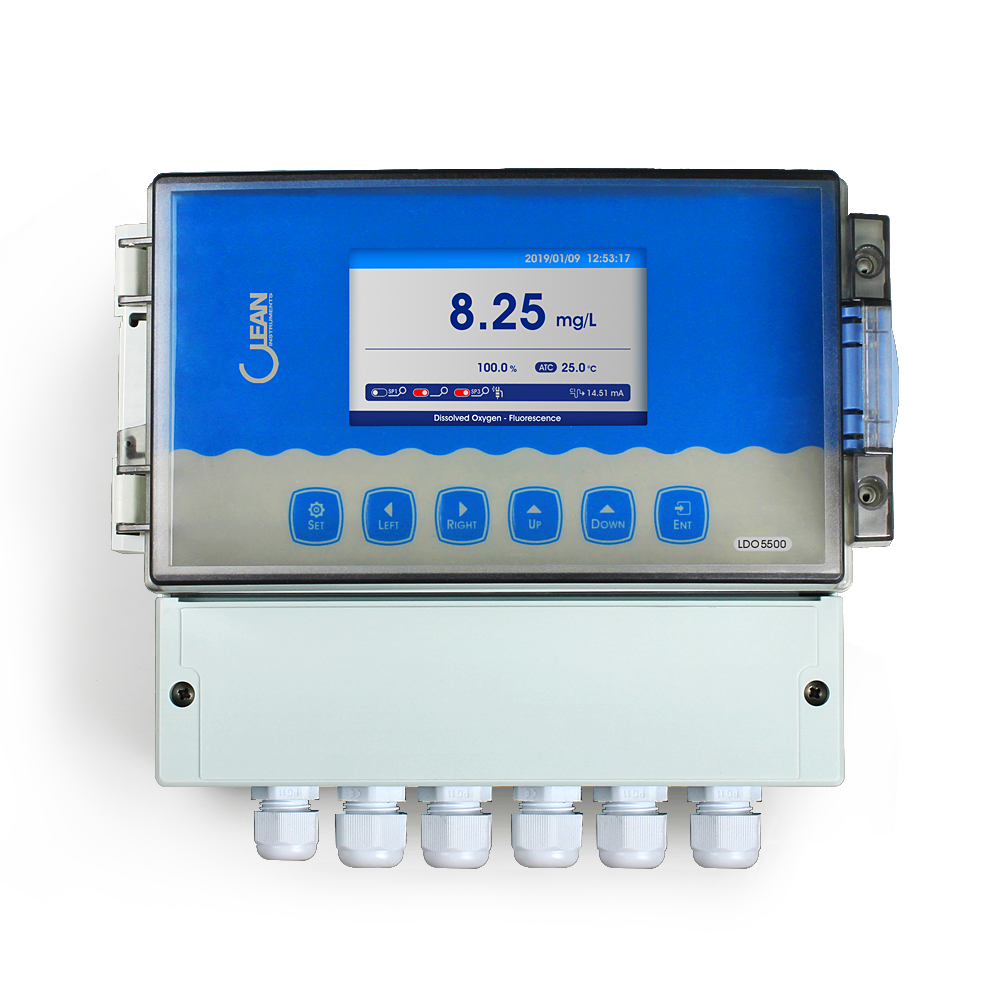

LDO5500 Fluorescence Dissolved Oxygen Analyzer
Fluorescence industrial online dissolved oxygen meter is an online water quality
monitoring and control instrument with microprocessor. The instrument is equipped with
fluorescence dissolved oxygen sensors. It is widely used in power plants, petrochemical
industry, environmental protection water treatment, aquaculture and other industries.
Fluorescence industrial online dissolved oxygen meter is an online water quality
monitoring and control instrument with microprocessor. The instrument is equipped with
fluorescence dissolved oxygen sensors. It is widely used in power plants, petrochemical
industry, metallurgical electronics, mining, paper industry, food and beverage industry,
environmental protection water treatment, aquaculture and other industries. The dissolved
oxygen value and temperature value of water solution are continuously monitored and
controlled.
● 90*50 mm Large color LCD display
● Data Recording /Curve display/Data upload function
● Multiple automatic calibration
● Double high resistance measurement mode, stable and reliable
● Manual and automatic temperature compensation
● Three relay control switches
● High & low alarm and hysteresis control
● 4-20mA x2 &RS485 Multiple output modes
● Multi parameter display simultaneously shows
● Password protection to prevent misoperation by non-staff
● 90*50 mm Large color LCD display
● Data Recording /Curve display/Data upload function
● Multiple automatic calibration
● Double high resistance measurement mode, stable and reliable
● Manual and automatic temperature compensation
● Three relay control switches
● High & low alarm and hysteresis control
● 4-20mA x2 &RS485 Multiple output modes
● Multi parameter display simultaneously shows
● Password protection to prevent misoperation by non-staff
| Measurement range | 0-20mg/L; 0-100%; |
| Measurement unit | mg/L, % |
| Resolution | 0.01mg/L; 0.1% |
| Basic error | ±1%F.S |
| Temperature | 0~50℃ |
| Temperature Resolution | 0.1℃ |
| Temperature Basic error | ±0.3℃ |
| Current outputs | Two 4~20mA,20~4mA,0~20mA |
| Signal output | RS485 MODBUS RTU |
| Other functions | Data record &Curve display |
| Three relay control contacts | 5A 250VAC,5A 30VDC |
| Optional power supply | 85~265VAC,9~36VDC,power consumption≤3W |
| Working conditions | No strong magnetic field interference around except the geomagnetic field. |
| Working temperature | -10~60℃ |
| Relative humidity | ≤90% |
| Waterproof rating | IP65 |
| Weight | 1.0kg |
| Dimensions (W*H*D) | 235×185×120mm |
| Installation methods | Wall Mounting |
| CS4760D Fluorescence Dissolved Oxygen 【Download】 The dissolved oxygen sensor uses fluorescence method to measure dissolved oxygen. The blue light emitted shines on the fluorescent layer, and the fluorescent material is excited to emit red light. The oxygen concentration is inversely proportional to the time when the fluorescent material returns to the ground state . When this method is used to measure dissolved oxygen, there is no oxygen consumption during measurement, the data is stable, the performance is reliable, there is no interference, and the installation and calibration are simple. The product is widely used for dissolved oxygen monitoring in sewage plants, waterworks, water stations, surface water, aquaculture, industry and other fields. |
||
| Replaceable membrance cap | MS4760 |  |
| Power/Outlet | 12VDC/RS485 MODBUS RTU | |
| Measure methods | fluorescence method | |
| Housing material | POM+ Stainless steel | |
| Waterproof grade | IP68 | |
| Measurement range | 0-20mg/L | |
| Accuracy | ±1%F.S | |
| Pressure range | ≤0.3Mpa | |
| Temperature compensation | NTC10K | |
| Temperature range | 0-50ºC | |
| Measuring/Storage Temp. | 0-45ºC | |
| Calibration | Oxygen Free Water Calibration and Air Calibration | |
| Connection methods | 4 core cable | |
| Cable length | Standard 10m cable, can be extended to 100m | |
| Installation thread | Upper NPT3/4'' | |
| Application | General application, river, lake, drink water, environmental protection, etc. | |
| CS4750D Fluorescence Dissolved Oxygen 【Download】 The dissolved oxygen sensor uses the fluorescence method to measure the dissolved oxygen, and the blue light emitted shines on the fluorescent layer. When excited, the substance emits red light, and the oxygen concentration is inversely proportional to the time when the fluorescent substance returns to the ground state. This method can measure dissolved oxygen without oxygen consumption, with stable data, reliable performance, no interference, and simple installation and calibration. |
||
| Measuring principle | Fluorimetry |  |
| Measuring range | 0～20.00mg/L | |
| resolving power | 0.01mg/L , 0.1℃ | |
| Measurement accuracy | ±2%F.S. , ±0.3℃ | |
| Temp. compensation | Automatic temp. comp. (Pt1000) | |
| Output mode | Rs-485, MODBUS/RTU protocol | |
| Working conditions | 0～50℃ , <0.2MPa | |
| Storage temperature | -5～65℃ | |
| Installation method | Immersion installation | |
| Cable length | Standard configuration: 10m, customizable | |
| power waste | 0.3W@12V | |
| Supply voltage | 12～24VDC | |
| Degree of protection | IP68 | |
| Calibration method | Two point calibration | |
| Head life | 1 year (under normal use) | |
| Shell material | POM and 304 stainless steel | |
