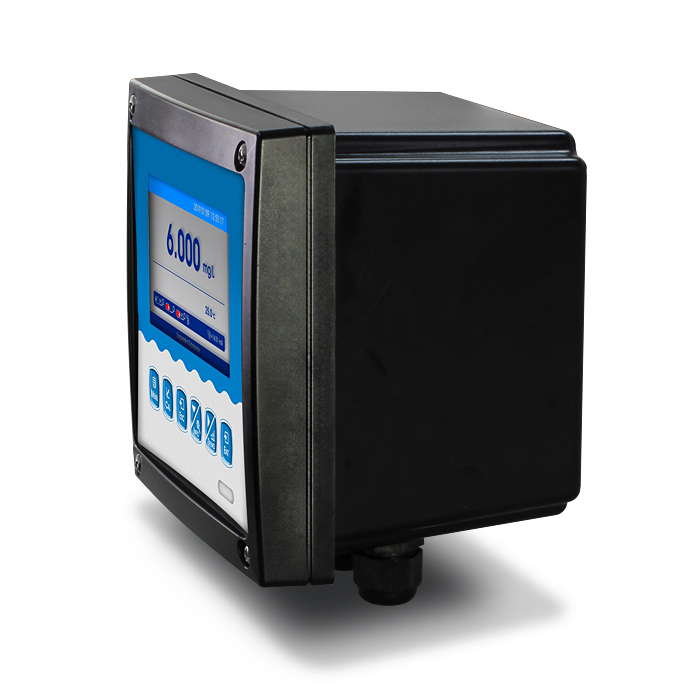

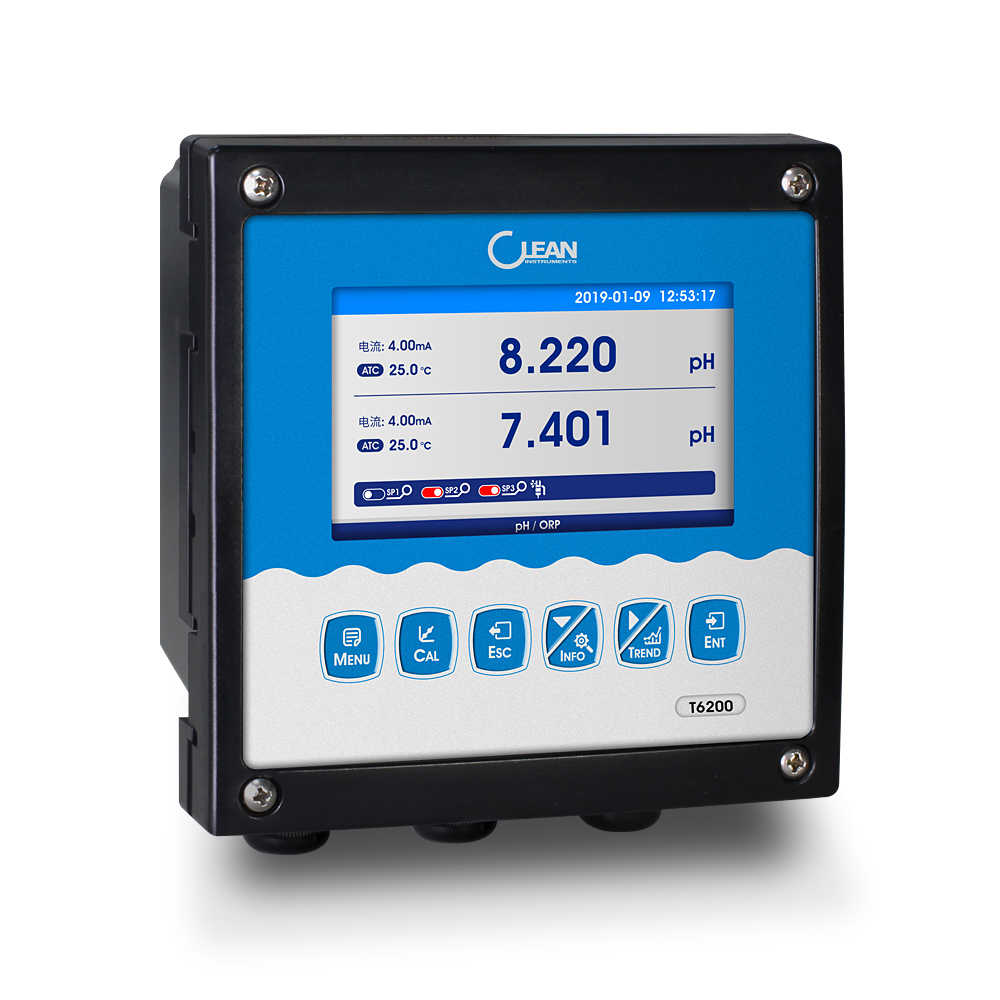

T6200 Two Parameter Analyzer

Designed for online monitoring of water quality such as rivers, lakes, enterprise outlets, inlets and outlets of sewage treatment plants,etc.

●90*50 mm Large color LCD display
●Data Recording /Curve display/Data upload function
●Multiple automatic calibration
●Double high resistance measurement mode, stable and reliable
●Manual and automatic temperature compensation
●Three relay control switches
●High & low alarm and hysteresis control
●4-20mA x2 &RS485 Multiple output modes
●Multi parameter display simultaneously shows
●Password protection to prevent misoperation by non-staff

Optional combination: (Note: pH, ORP, CON- conductivity, DO- dissolved oxygen, TB-turbidity,SS-suspended solids sludge concentration, ion - ion)
Analog signal: Ph + pH; PH+ORP, PH+CON,PH+DO, PH+lon, Ion+Ion,ORP+Ion
Analog + digital signal: Ph + turb, PH+SS,DO+TURB, DO+SS, CON+TURB,CON+SS.
Digital signal: any two collocations of digital sensors.

pH	Measurement range	-2～16.00pH
	Measurement unit	pH
	Resolution	0.001pH
	Basic error	±0.01pH
ORP	Measurement range	-2000～＋2000mV
	Measurement unit	mV
	Resolution	1mV
	Basic error	±1mV
CON	Conductivity	0～500mS/cm
	Resolution	0.01μs/cm;0.01ms/cm
	Basic error	±0.5%F.S
	Resistivity	0～18.25MΩ/cm
	Resolution	0.01KΩ/cm;0.01MΩ/cm
	TDS	0～250g/L
	Resolution	0.01mg/L;0.01g/L
	Salinity	0～700ppt
	Resolution	0.01ppm;0.01ppt
DO	Measurement range	0～20.0mg/L;0～100%
	Measurement unit	mg/L、%
	Resolution	0.01mg/L;0.1%
	Basic error	±1%F.S
TB	Measurement range	0.001-99999NTU
	Measurement unit	NTU、mg/L
	Resolution	0.001; 0.01; 0.1; 1
	Basic error	±1%F.S
SS	Measurement range	0～40.0mg/L；0～100%；
	Measurement unit	mg/L、%
	Resolution	0.01mg/L；0.1%；
	Basic error	±1%F.S；
ION	Measurement range	0~99999mg/L(ppm)
	Measurement Principle	Ion electrode method
	Resolution	0.01 ;0.1;1 mg/L(ppm)
	Basic error	±2.5%

	Temperature	-10~150.0°C(Depend on the Sensor)
	Temp. resolution	0.1°C
	Temp. accuracy	±0.3°C
	Temp. compensation	0~150.0°C
	Temp. compensation	Manual or automatic
	Stability	pH:≤0.01pH/24h;ORP: ≤1mV/24h
	Current outputs	Two 4~20mA,20~4mA,0~20mA
	Signal output	RS485 MODBUS RTU
	Other functions	Data record &Curve display
	Three relay control contacts	5A 250VAC,5A 30VDC
	Optional power supply	85~265VAC,9~36VDC,power consumption≤3W
	Working conditions	No strong magnetic field interference
	Working temperature	around except the geomagnetic field.
	Relative humidity	-10~60°C
	Waterproof rating	≤90%
	Weight	IP65
	Dimensions	0.8kg
	Installation opening size	144×144×118mm
	Installation methods	138×138mm

Type	Model	Application
pH	CS1543D	Pure water, tap water, surface water and waste water
	CS1753D	General application
	CS1768D	Viscous fluid, protein environment
ORP	CS2733D	General application
	CS2768D	seawater , swimming pool, waste water
CON	CS3700D	K=1 1 μS/cm -20 mS/cm
	CS3701D	K=1 1 μS/cm - 20 mS/cm
	CS3740D	K=4.5 10 μS/cm - 500 mS/cm
	CS3722D	K=0.1 0.1 - 200.0 μS/cm
	CS3723D	K=0.01 0.00 - 2.00 μS/cm
	CS3710D	K=10 10 μS/cm - 200.0 mS/cm
DO	CS4551D	400na polarographic, 0-40mg / L, replaceable die
	CS4751D	400na polarographic, 0-40mg / L, replaceable die
	CS4773D	80na polarographic, 0-40mg / L, replaceable die

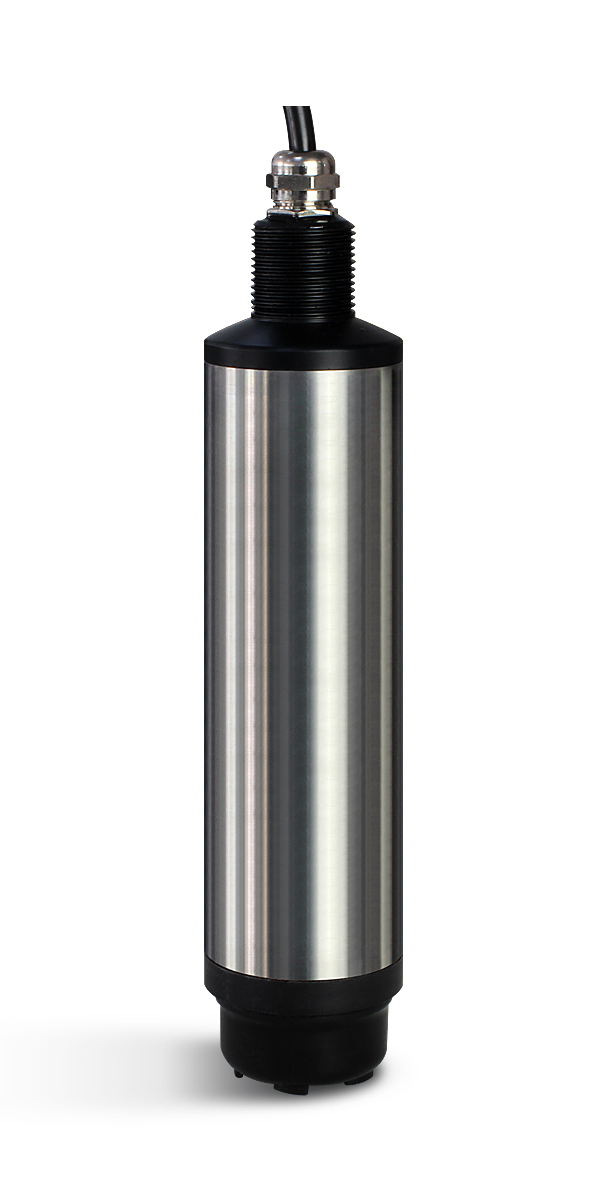

	CS4760D	Fluorescent method, 0-20mg / L, replaceable die
TB	CS7800D	Low turbidity: flow type, 0 ~ 20NTU
	CS7801D	Low turbidity: flow type, 0 ~ 200NTU
	CS7820D	Medium concentration, 0-400NTU
	CS7821D	Medium concentration, 0-2000NTU
	CS7830D	High concentration, 0-4000NTU
	CS7832D	High concentration with self-cleaning, 10-4000NTU
	CS7833D	High concentration dual light band self-cleaning, 2-4000NTU
SS	CS7840D	Low turbidity: flow through, 0.1-200mg/l
	CS7850D	Medium concentration, 2-500mg / L
	CS7851D	Medium concentration, 2-5000mg / L
	CS7860D	High concentration, 10-50000mg / L
	CS7862D	High concentration, blade self-cleaning 10-50000mg / L,
	CS7863D	High concentration, scraper self-cleaning, double beam 2-50000mg / L
ION	CS6710FD	Fluoride ( F- )
	CS6710ClD	Chloride ( Cl- )
	CS6710NO3D	Nitrate ( NO3- )
	CS6710NH4D	Ammonium ( (NH4+ )
	CS6710NO2D	Nitrite ( NO2- )
	CS6710KD	Potassium ( K+ )
	CS6710MgD	Magnesium ( Mg2+ )
	CS6710CaD	Calcium ( Ca2+ )
	CS6710WHD	Water Hardness
	CS6710NaD	Sodium ( Na+ )
