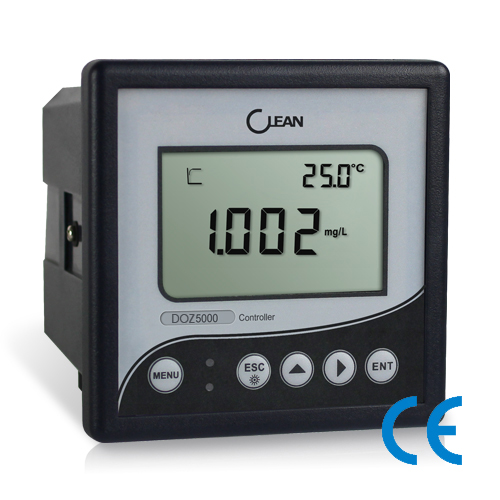

DOZ5000 Controller / Transmitter
●Standard 1/4 DIN casing, easy installation.
●IP65 rated: high luminance LED backlight, applicable to harsh environment.
●Adopt integrated switching power supply module; high protection against electromagnetic
interference.
●Menu-driven program that simplifies set-up.
●Instant browsing all the settings in measurement mode, easy to master your working state
●Scaleable isolated 0/4-20mA Outputs
●Two relay circuits, users can select high-low control freely. Separately adjustable high and low
set-point hysteresis(dead bands) prevent chattering of relays around the set points.
●Third relay Cleaning/Alarm function; users sets the cleaning frequency and time
●Temperature value offset adjustment.
●Optional nanoampere electrode (80mA, 400mA)
●RS-485 output
●IP65 rated: high luminance LED backlight, applicable to harsh environment.
●Adopt integrated switching power supply module; high protection against electromagnetic
interference.
●Menu-driven program that simplifies set-up.
●Instant browsing all the settings in measurement mode, easy to master your working state
●Scaleable isolated 0/4-20mA Outputs
●Two relay circuits, users can select high-low control freely. Separately adjustable high and low
set-point hysteresis(dead bands) prevent chattering of relays around the set points.
●Third relay Cleaning/Alarm function; users sets the cleaning frequency and time
●Temperature value offset adjustment.
●Optional nanoampere electrode (80mA, 400mA)
●RS-485 output
Dissolved Ozone | Range | 0~2.000mg/L or 0~20.00mg/L |
Accuracy | 0.001mg/L or 0.01mg/L | |
Resolution | 1%1LSD | |
Temperature | Temperature Range | -5.0 - +100 °C |
Range | -10.0-110.0 C | |
Resolution | 0.1°C | |
Accuracy | 0.3 C | |
Temperature Sensor | NTC22K / PT1000 | |
Temperature Compensation | Automatic | |
Signal Output | Signal Output | 4-20 mA (Adjustable) |
Current Accuracy | 1% F.S. | |
Load | < 500 Ω | |
Data interface | RS485 | Yes |
Relay Ouput | On/Off | 2 SPST Relays |
Output | 2.5A 230 VAC | |
Cleaning/Alarm Relays | 1X 2.5A | |
Others | Power | 85~260 VAC or 24 VDC |
Working Temperature | 0~60°C | |
Humidity | < 90% | |
IP Rated | IP65 | |
Installation | Panel Mounting | |
Dimensions | (H×W×D) 108×108×158 mm | |
Panel Cut Size | 94.5×94.5 mm | |
Weight | 0.6 kg | |
Model | Specification | images |
DOZ5000 | Dissolved Ozone Controller / Transmitter | |
CS6520 | Dissolved Ozone Chlorine Sensor | |
