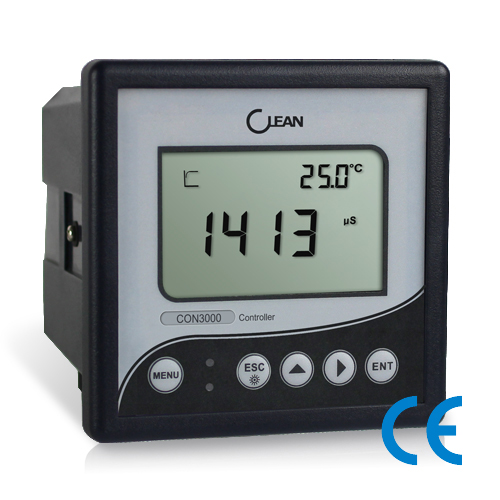

CON3000 Controller / Transmitter
CON3000 Conductivity / TDS / Salinity
Conductivity / TDS / Salinity Controller / TransmitterConcise design, Simple and intuitive user interface, precise, comes with the large luminant LCD screen, CON3000 will help you make considerable savings. Its your most economical choice.
●Standard 1/4 DIN casing.
●IP65 rated, waterproof and anti-gas, applicable in extreme conditions.
●High protection against electromagnetic inteference.
●Menu-driven program that simplifies set-up.
●Built-in memory backup to ensure that setup parameter and calibration information are not erased or power -off condition.
●Scaleable isolated 4-20mA Outputs.
●Temperature value offset adjustment.
●Two relay circuits, users can select high-low control freely.
●Separately adjustable high and lowset-point hysteresis (dead bands) prevent chattering of relays
around the set points.
●LED indicators monitor control status from a distance.
●Large LCD, with high luminance LED backlight.
●IP65 rated, waterproof and anti-gas, applicable in extreme conditions.
●High protection against electromagnetic inteference.
●Menu-driven program that simplifies set-up.
●Built-in memory backup to ensure that setup parameter and calibration information are not erased or power -off condition.
●Scaleable isolated 4-20mA Outputs.
●Temperature value offset adjustment.
●Two relay circuits, users can select high-low control freely.
●Separately adjustable high and lowset-point hysteresis (dead bands) prevent chattering of relays
around the set points.
●LED indicators monitor control status from a distance.
●Large LCD, with high luminance LED backlight.
 |
 |
 |
 |
| Ultra pure water | Industrial process | Boiler water | Circulating water |
| Conductivity | Range | 0.000 S/cm-400.0 mS/cm |
| Resolution | 0.001 S/cm-0.1 mS/cm | |
| Accuracy | 0.5% F.S. | |
| Cell Constant | K=0.01,0.1,1.0,10.0 | |
| Reference Temperature | 15.0-25.0 C | |
| Temperature Factor | 0.00-4.00% | |
| Salinity | Range | 0.0-400.0 g/L |
| Resolution | 0.1 g/L | |
| Accuracy | 0.5% F.S. | |
| TDS | Range | 0.000 ppm-400.0 ppt |
| Resolution | 0.001 ppm-0.1 ppt | |
| Accuracy | 0.5% F.S. | |
| TDS Factor | 0.40-1.0 | |
| Temperature | Range | -10.0-110.0 C |
| Resolution | 0.1°C | |
| Accuracy | 0.3 C | |
| Temperature Sensor | Pt1000 | |
| Temperature Compensation | Automatic | |
| Output/load | Signal Output | 4-20 mA (Adjustable) |
| Current Accuracy | 1%FS | |
| Load | <500 Ω | |
| Relay Ouput | On/Off | 2 SPST Relays |
| Output | 2.5A 230 VAC | |
| Others | Power | 85~260 VAC or 24 VDC |
| Working Temperature | 0~60°C | |
| Humidity | < 90% | |
| IP Rated | IP65 | |
| Installation | Panel Mounting | |
| Dimensions | (H×W×D) 108×108×158 mm | |
| Panel Cut Size | 94.5×94.5 mm | |
| Weight | 0.5 kg | |
