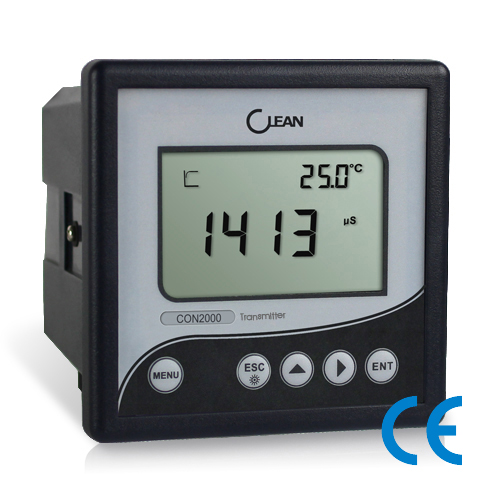

CON2000 2-Wire Transmitter
CON2000 Conductivity / TDS / Salinity Transmitter
In connection with the appropriate sensors, the CON2000 measures in the range of low to high conductivity in 2- wire technology. Isolated input and output ensures clear, uninterrupted signal transmittance for hazardous and safe area applications. Its your brilliant choice.
●2-Wire design, remarkably saving cost and space, Isolated input and output.
●User define scaleable 4-20mA outputs for pH/ORP.
●Verify output current online.
●Under measurement range: signal output 3.80mA; Over measurement range: signal output
21.00mA.
●Large LCD, with high luminance LED backlight.
●Menu-driven program that simplifies set-up.
●IP65 rated, waterproof and low current, applicable in extreme conditions.
●Optimum protection against electromagnetic interference.
●Power: 24VDC.
●User define scaleable 4-20mA outputs for pH/ORP.
●Verify output current online.
●Under measurement range: signal output 3.80mA; Over measurement range: signal output
21.00mA.
●Large LCD, with high luminance LED backlight.
●Menu-driven program that simplifies set-up.
●IP65 rated, waterproof and low current, applicable in extreme conditions.
●Optimum protection against electromagnetic interference.
●Power: 24VDC.
 |
 |
 |
 |
| Ultra pure water | Industrial process | Boiler water | Circulating water |
| Conductivity | Range | 0.000 S/cm-400.0 mS/cm |
| Resolution | 0.001 S/cm-0.1 mS/cm | |
| Accuracy | 0.5% F.S. | |
| Cell Constant | K=0.01,0.1,1.0,10.0 | |
| Reference Temperature | 15.0-25.0 C | |
| Temperature Factor | 0.00-4.00% | |
| Salinity | Range | 0.0-400.0 g/L |
| Resolution | 0.1 g/L | |
| Accuracy | 0.5% F.S. | |
| TDS | Range | 0.000 ppm-400.0 ppt |
| Resolution | 0.001 ppm-0.1 ppt | |
| Accuracy | 0.5% F.S. | |
| TDS Factor | 0.40-1.0 | |
| Temperature | Range | -10.0-110.0 C |
| Resolution | 0.1°C | |
| Accuracy | 0.3 C | |
| Temperature Sensor | Pt1000 | |
| Temperature Compensation | Automatic | |
| Signal Output/load | Signal Output | 4-20 mA (Adjustable) |
| Current Accuracy | 1%FS | |
| Load | <500 Ω | |
| Under measurement range | signal output 3.80mA | |
| Over measurement range | signal output 21.00mA | |
| Others | Power | 24 VDC |
| Working Temperature | 0~60°C | |
| Humidity | < 90% | |
| IP Rated | IP65 | |
| Installation | Panel Mounting | |
| Dimensions | (H×W×D) 108×108×158 mm | |
| Panel Cut Size | 94.5×94.5 mm | |
| Weight | 0.5 kg | |
